General Description
MSM9201-xx General Description
The MSM9201-xx is a dot matrix fluorescent display tube controller driver IC which displays characters, numerics and symbols.
Dot matrix fluorescent display tube drive signals are generated by serial data sent from a microcontroller.A display system is easily realized by internal ROM and RAM for character display.
The MSM9201-xx has low power consumption since it is made by CMOS process technology.
-01 is available as a general code.Custom codes are provided on customer's request
MSM9201-xx Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit | |
| Supply Voltage 1 |
VDD |
(*1) |
0.3 to 6.5 |
V | |
|
VDISP |
(*1) |
0.3 to 6.5 | |||
| Supply Voltage 2 |
VFL |
- |
80 to VDISP+0.3 | ||
| Input Voltage |
VIN |
- |
80 to VDD+0.3 | ||
| Power Dissipation |
PD |
Ta25°C |
QFP80-P-1414-0.65-K |
565 |
mW |
| QFP80-P-1420-0.80-BK |
643 | ||||
| Storage Temperature |
TSTG |
- |
55 to 150 |
°C | |
| Output Current |
IO1 |
COM1-COM24 |
30 to 0.0 |
mA | |
|
IO2 |
AD1-AD4 |
20 to 0.0 | |||
|
IO3 |
SEG1-SEG35 |
10 to 0.0 | |||
|
IO4 |
P1-P4 |
4.0 to 4.0 | |||
MSM9201-xx Features
• Logic power supply (VDD) : 3.3 V±10%/5.0 V±10%
• Fluorescent display tube drive power supply (VDISP) : 3.3 V±10%/5.0 V±10%
• Fluorescent display tube drive power supply (VFL) : 20 to 60 V
• VFD driver output current
(VFD driver output can directly be connected to the fluorescent display tube. No pull-down resistor is required.)
- Segment driver (SEG1 to SEG35) : 5.0 mA (VFL=60V)
- Segment driver (AD1 to AD8) : 10.0 mA (VFL=60V)
- Grid driver (COM1 to COM16) : 20.0 mA (VFL=60V)
• General output port output current
- Output driver (P1-4) : ±1.0 mA (VDD=3.3V±10%)
±2.0 mA (VDD=5.0V±10%)
• Content of display
- CGROM 5*7 dots, 240 types (character data)
- CGRAM 5*7 dots, 16 types (character data)
- ADRAM 24 (display digit) *4 bits (symbol data)
- DCRAM 24 (display digit) *8 bits (register for character data display)
- General output port 4 bits (static mode)
• Display control function
- Display digit : 9 to 24 digits
- Display duty (contrast adjustment) : 8 stages
- All lights ON/OFF
• 3 interfaces with microcontroller : DA, CS, CP (4 interfaces if RESET is added)
• 1-byte instruction execution (excluding data write to RAM)
• Built-in oscillation circuit (external C and R)
• Package options:
80-pin plastic QFP (QFP80-P-1414-0.65-K) (Product name: MSM9201-xxGS-K)
80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name: MSM9201-xxGS-BK)
xx indicates the code number.
• Fluorescent display tube drive power supply (VDISP) : 3.3 V±10%/5.0 V±10%
• Fluorescent display tube drive power supply (VFL) : 20 to 60 V
• VFD driver output current
(VFD driver output can directly be connected to the fluorescent display tube. No pull-down resistor is required.)
- Segment driver (SEG1 to SEG35) : 5.0 mA (VFL=60V)
- Segment driver (AD1 to AD8) : 10.0 mA (VFL=60V)
- Grid driver (COM1 to COM16) : 20.0 mA (VFL=60V)
• General output port output current
- Output driver (P1-4) : ±1.0 mA (VDD=3.3V±10%)
±2.0 mA (VDD=5.0V±10%)
• Content of display
- CGROM 5*7 dots, 240 types (character data)
- CGRAM 5*7 dots, 16 types (character data)
- ADRAM 24 (display digit) *4 bits (symbol data)
- DCRAM 24 (display digit) *8 bits (register for character data display)
- General output port 4 bits (static mode)
• Display control function
- Display digit : 9 to 24 digits
- Display duty (contrast adjustment) : 8 stages
- All lights ON/OFF
• 3 interfaces with microcontroller : DA, CS, CP (4 interfaces if RESET is added)
• 1-byte instruction execution (excluding data write to RAM)
• Built-in oscillation circuit (external C and R)
• Package options:
80-pin plastic QFP (QFP80-P-1414-0.65-K) (Product name: MSM9201-xxGS-K)
80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name: MSM9201-xxGS-BK)
xx indicates the code number.

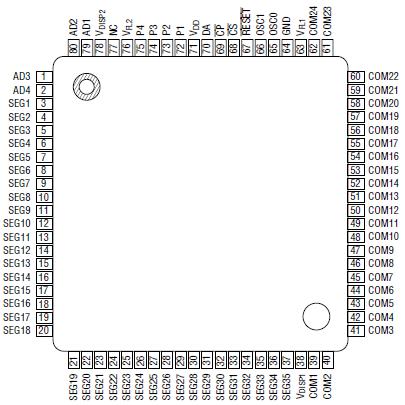

MSM9201-xx Connection Diagram
MSM9201-xx
PDF/DataSheet Download
- Datasheet: MSM9201-xx
- File Size: 279402 KB
- Manufacturer: OKI
- Click here to Download
