Position: Home > Datasheet list > MSP Series > Index M > MSP430F1222IDWR
Electronica China

Purchase MSP430F1222IDWR, In-stock MSP430F1222IDWR From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

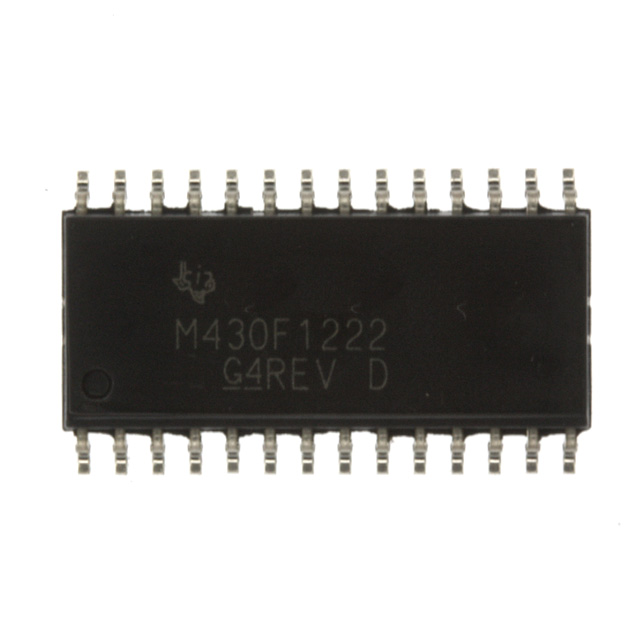

MSP430F1222IDWR

MSP Series Datasheet download

Five Points

Part Number: MSP430F1222IDWR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC MCU 16BIT 4KB FLASH 28-SOIC

Price Break

1000

Unit Price

2.29500

Extended Price

2295.00

(All prices are in USD) Prices for reference only
Urgent Purchase

MSP430F1222IDWR General Description

IC MCU 16BIT 4KB FLASH 28-SOIC

MSP430F1222IDWR Parameters

Technical/Catalog InformationMSP430F1222IDWR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Program Memory Size4KB (4K x 8 + 256B)
RAM Size256 x 8
Number of I /O22
Package / Case28-SOIC (7.5mm Width)
Speed8MHz
Controller SeriesMSP430
Oscillator TypeInternal
PackagingTape & Reel (TR)
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorRISC
Data ConvertersA/D 8x10b
Core Size16-Bit
Operating Temperature-40°C ~ 85°C
ConnectivitySPI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)1.8 V ~ 3.6 V
Drawing Number296; 4040000-6; DW; 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MSP430F1222IDWR
MSP430F1222IDWR

MSP430F1222IDWR datasheet

MSP430F1222IDWR
PDF/DataSheet Download
