Part Number: MSP430F427IPM_1145096
Description: The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices feat...
- Table of contents:
MSP430F427IPM_1145096
-
Suppliers
DataSheet
General Description
MSP430F427IPM_1145096 General Description
The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low power
modes is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency.
The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6s.
The MSP430F42x series are microcontroller configurations with three independent 16-bit sigma-delta A/D
converters, each with an integrated differential programmable gain amplifier input stage. Also included is a
built-in 16-bit timer, 128 LCD segment drive capability, hardware multiplier and 14 I/O pins.
Typical applications include high resolution applications such as handheld metering equipment, weigh scales
and energy meters.
MSP430F427IPM_1145096 Maximum Ratings
Voltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to + 4.1 V
Voltage applied to any pin (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55 to 150
Storage temperature (programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to 85
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is applied to the TDI/TCLK pin when blowing the JTAG fuse.
Voltage applied to any pin (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55 to 150
Storage temperature (programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to 85
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is applied to the TDI/TCLK pin when blowing the JTAG fuse.
MSP430F427IPM_1145096 Features
` Low Supply-Voltage Range, 1.8 V . . . 3.6 V
` Ultralow-Power Consumption:
− Active Mode: 400 A at 1 MHz, 3.0 V
− Standby Mode: 1.6 A
− Off Mode (RAM Retention): 0.1 A
` Five Power-Saving Modes
` Wake-Up From Standby Mode in less than 6 s
` Frequency-Locked Loop, FLL+
` 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
` Three Independent 16-bit Sigma-Delta A/D Converters with Differential PGA Inputs
` 16-Bit Timer_A With Three Capture/Compare Registers
` Integrated LCD Driver for 128 Segments
` Serial Communication Interface (USART), Asynchronous UART or Synchronous SPI selectable by software
` Brownout Detector
` Supply Voltage Supervisor/Monitor With Programmable Level Detection
` Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
` Bootstrap Loader in Flash Devices
` Family Members Include:
− MSP430F423: 8KB + 256B Flash Memory, 256B RAM
− MSP430F425: 16KB + 256B Flash Memory, 512B RAM
− MSP430F427: 32KB + 256B Flash Memory, 1KB RAM
` Available in 64-Pin Quad Flat Pack (QFP)
` For Complete Module Descriptions, Refer to the MSP430x4xx Family User's Guide, Literature Number SLAU056
` Ultralow-Power Consumption:
− Active Mode: 400 A at 1 MHz, 3.0 V
− Standby Mode: 1.6 A
− Off Mode (RAM Retention): 0.1 A
` Five Power-Saving Modes
` Wake-Up From Standby Mode in less than 6 s
` Frequency-Locked Loop, FLL+
` 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
` Three Independent 16-bit Sigma-Delta A/D Converters with Differential PGA Inputs
` 16-Bit Timer_A With Three Capture/Compare Registers
` Integrated LCD Driver for 128 Segments
` Serial Communication Interface (USART), Asynchronous UART or Synchronous SPI selectable by software
` Brownout Detector
` Supply Voltage Supervisor/Monitor With Programmable Level Detection
` Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
` Bootstrap Loader in Flash Devices
` Family Members Include:
− MSP430F423: 8KB + 256B Flash Memory, 256B RAM
− MSP430F425: 16KB + 256B Flash Memory, 512B RAM
− MSP430F427: 32KB + 256B Flash Memory, 1KB RAM
` Available in 64-Pin Quad Flat Pack (QFP)
` For Complete Module Descriptions, Refer to the MSP430x4xx Family User's Guide, Literature Number SLAU056

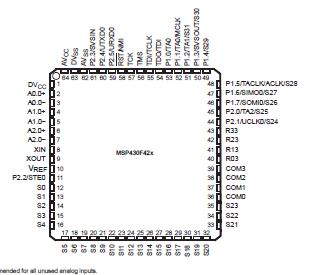

MSP430F427IPM_1145096 Connection Diagram
