MSP430x33x

Features: ` Low Supply Voltage Range 2.5 V 5.5 V` Low Operation Current, 400 A at 1 MHz, 3 V` Ultra-Low Power Consumption (Standby Mode Down to 0.1 mA)` Five Power-Saving Modes` Wake Up from Standby Mode in 6 mS` 16-Bit RISC Architecture, 300 ns Instruction Cycle Time` Single Common 32 kHz Crysta...

product image

MSP430x33x Picture
See larger image
SeekIC No. : 004429342 Detail

MSP430x33x: Features: ` Low Supply Voltage Range 2.5 V 5.5 V` Low Operation Current, 400 A at 1 MHz, 3 V` Ultra-Low Power Consumption (Standby Mode Down to 0.1 mA)` Five Power-Saving Modes` Wake Up from Standb...

MSP430x33x Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSP430x33x
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Supply Voltage Range 2.5 V 5.5 V
` Low Operation Current, 400 A at 1 MHz, 3 V
` Ultra-Low Power Consumption (Standby Mode Down to 0.1 mA)
` Five Power-Saving Modes
` Wake Up from Standby Mode in 6 mS
` 16-Bit RISC Architecture, 300 ns Instruction Cycle Time
` Single Common 32 kHz Crystal, Internal System Clock up to 3.8 MHz
` Integrated LCD Driver for up to 120 Segments
` Integrated Hardware Multiplier Performs Signed, Unsigned, and MAC Operations for Operands Up to 16 X 16 Bits
` Serial Communication Interface (USART), Select Asynchronous UART or Synchronous SPI by Software
` Slope A/D Converter Using External Components
` 16-Bit Timer With Five Capture/Compare Registers
` Programmable Code Protection by Security Fuse
` Family Members Include:
    MSP430C336 24 KB ROM, 1 KB RAM
    MSP430C337 32 KB ROM, 1 KB RAM
    MSP430P337 32 KB OTP, 1 KB RAM
` EPROM Version Available for Prototyping: PMS430E337
` Serial On-Board Programming
` Available in 100 Pin Quad Flat-Pack (QFP) Package, 100 Pin Ceramic Quad Flat-Pack (CFP) package (EPROM Version)

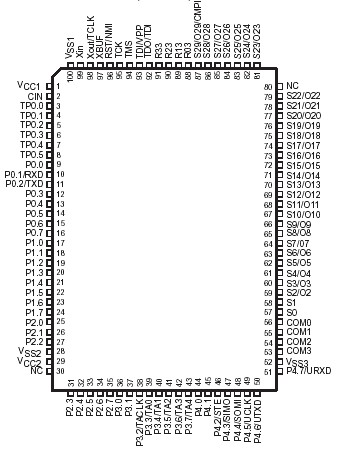

Pinout

Connection Diagram


Specifications

Supply voltage range, between VCC terminals ..................................................0.3 V to 0.3 V
Supply voltage range, between VSS terminals  ...............................................0.3 V to 0.3 V
Input voltage range, VCC1 to any VSS terminal ..................................................0.3 V to 6 V
Input voltage range, VCC2 to any VSS terminal ..................................................0.3 V to 6 V
Input voltage range to any terminal (referenced to VSS)  .....................0.3 V to VCC + 0.3 V
Diode current at any device terminal .............................................................................±2 mA
Storage temperature range, Tstg, (unprogrammed device)  ............................55 to 150
Storage temperature range, Tstg, (programmed device) ...................................40 to 85


Description

The Texas Instruments MSP430x33x series is a ultra low-power microcontroller family consisting of several devices which features different sets of modules targeted to various applications. The controller is designed to be battery operated for an extended application lifetime. With the 16-bit RISC architecture, 16 integrated registers on the CPU, and the constant generator, the MSP430x33x achieves maximum code efficiency. The digital-controlled oscillator, together with the frequency lock loop (FLL), provides a fast wake up from a low-power mode to an active mode in less than 6 s. The MSP430x33x series micro-controllers have built in hardware multiplication and communication capability using asynchronous (UART) and synchronous protocols.

Typical applications of the MSP430x33x include electronic gas, water, and electric meters and other sensor systems that capture analog signals, converts them to digital values, processes, displays, or transmits them to a host system.
