General Description
MSP430xG461x General Description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 s.
The MSP430xG461x series are microcontroller configurations with two 16-bit timers, a high performance 12-bit A/D converter, dual 12-bit D/A converters, three configurable operational amplifiers, one universal serial communication interface (USCI), one universal synchronous/asynchronous communication interface (USART), DMA, 80 I/O pins, and a liquid crystal display (LCD) driver with regulated charge pump.
Typical applications for this device include portable medical applications and e-meter applications.
MSP430xG461x Maximum Ratings
Voltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 4.1 V
Voltage applied to any pin (see Note) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature, Tstg: (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55°C to 150°C
(programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−40°C to 85°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE: All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is applied
to the TDI/TCLK pin when blowing the JTAG fuse.
Voltage applied to any pin (see Note) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature, Tstg: (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55°C to 150°C
(programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−40°C to 85°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE: All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is applied
to the TDI/TCLK pin when blowing the JTAG fuse.
MSP430xG461x Features
` Low Supply-Voltage Range, 1.8 V to 3.6 V
` Ultralow-Power Consumption:
− Active Mode: 400 A at 1 MHz, 2.2 V
− Standby Mode: 2.5 A
− Off Mode (RAM Retention): 0.35 A
` Five Power-Saving Modes
` Wake-Up From Standby Mode in less than 6 s
` 16-Bit RISC Architecture, Extended
Memory, 125-ns Instruction Cycle Time
` Three Channel Internal DMA
` 12-Bit A/D Converter With Internal
Reference, Sample-and-Hold and Autoscan Feature
` Three Configurable Operational Amplifiers
` Dual 12-Bit D/A Converters With
Synchronization
` 16-Bit Timer_A With Three
Capture/Compare Registers
` 16-Bit Timer_B With Seven
Capture/Compare-With-Shadow Registers
` On-Chip Comparator
` Supply Voltage Supervisor/Monitor With
Programmable Level Detection
` Serial Communication Interface (USART1),
Select Asynchronous UART or
Synchronous SPI by Software
` Universal Serial Communication Interface
− Enhanced UART Supporting
Auto-Baudrate Detection
− IrDA Encoder and Decoder
− Synchronous SPI
− I2CTM
` Serial Onboard Programming,
Programmable Code Protection by Security Fuse
` Brownout Detector
` Basic Timer with Real Time Clock Feature
` Integrated LCD Driver up to 160 Segments
With Regulated Charge Pump
` Family Members Include:
− MSP430xG4616:
92KB+256B Flash or ROM† Memory 4KB RAM
− MSP430xG4617:
92KB+256B Flash or ROM† Memory, 8KB RAM
− MSP430xG4618:
116KB+256B Flash or ROM† Memory, 8KB RAM
− MSP430xG4619:
120KB+256B Flash or ROM† Memory, 4KB RAM
† ROM devices Product Preview Only
` For Complete Module Descriptions, Refer
to the MSP430x4xx Family User's Guide
` Ultralow-Power Consumption:
− Active Mode: 400 A at 1 MHz, 2.2 V
− Standby Mode: 2.5 A
− Off Mode (RAM Retention): 0.35 A
` Five Power-Saving Modes
` Wake-Up From Standby Mode in less than 6 s
` 16-Bit RISC Architecture, Extended
Memory, 125-ns Instruction Cycle Time
` Three Channel Internal DMA
` 12-Bit A/D Converter With Internal
Reference, Sample-and-Hold and Autoscan Feature
` Three Configurable Operational Amplifiers
` Dual 12-Bit D/A Converters With
Synchronization
` 16-Bit Timer_A With Three
Capture/Compare Registers
` 16-Bit Timer_B With Seven
Capture/Compare-With-Shadow Registers
` On-Chip Comparator
` Supply Voltage Supervisor/Monitor With
Programmable Level Detection
` Serial Communication Interface (USART1),
Select Asynchronous UART or
Synchronous SPI by Software
` Universal Serial Communication Interface
− Enhanced UART Supporting
Auto-Baudrate Detection
− IrDA Encoder and Decoder
− Synchronous SPI
− I2CTM
` Serial Onboard Programming,
Programmable Code Protection by Security Fuse
` Brownout Detector
` Basic Timer with Real Time Clock Feature
` Integrated LCD Driver up to 160 Segments
With Regulated Charge Pump
` Family Members Include:
− MSP430xG4616:
92KB+256B Flash or ROM† Memory 4KB RAM
− MSP430xG4617:
92KB+256B Flash or ROM† Memory, 8KB RAM
− MSP430xG4618:
116KB+256B Flash or ROM† Memory, 8KB RAM
− MSP430xG4619:
120KB+256B Flash or ROM† Memory, 4KB RAM
† ROM devices Product Preview Only
` For Complete Module Descriptions, Refer
to the MSP430x4xx Family User's Guide

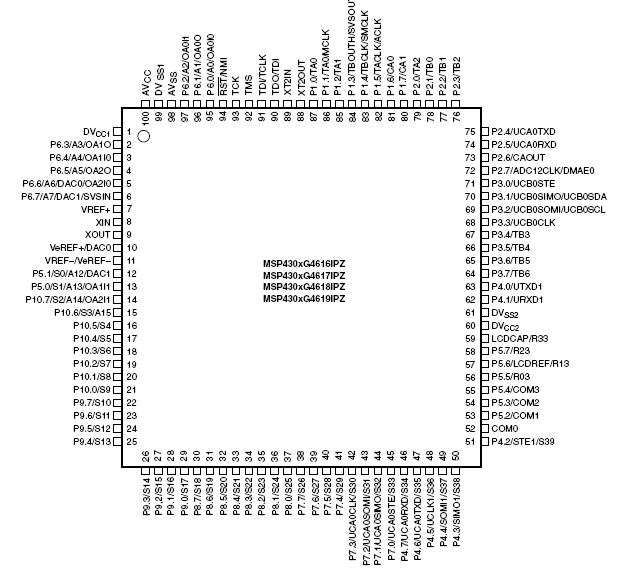

MSP430xG461x Connection Diagram
MSP430XG461X
PDF/DataSheet Download
- Datasheet: MSP430XG461X
- File Size: 1757989 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
