MSP50C32

Features: · Dual Programmable LPC-12 Speech Synthesizers· Simultaneous LPC and PCM Waveforms· 8-Bit Microprocessor with 61 instructions· 32 Twelve-Bit Words and 224 Bytes of RAM· 3.3V to 6.5V CMOS Technology for Low Power Dissipation· Direct Speaker Drive Capability· Mask Selectable Internal or Ex...

product image

MSP50C32 Picture
SeekIC No. : 004429353 Detail

MSP50C32: Features: · Dual Programmable LPC-12 Speech Synthesizers· Simultaneous LPC and PCM Waveforms· 8-Bit Microprocessor with 61 instructions· 32 Twelve-Bit Words and 224 Bytes of RAM· 3.3V to 6.5V CMOS T...

floor Price/Ceiling Price

Part Number:
MSP50C32
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Dual Programmable LPC-12 Speech Synthesizers
· Simultaneous LPC and PCM Waveforms
· 8-Bit Microprocessor with 61 instructions
· 32 Twelve-Bit Words and 224 Bytes of RAM
· 3.3V to 6.5V CMOS Technology for Low Power Dissipation
· Direct Speaker Drive Capability
· Mask Selectable Internal or External Clock
· Internal Clock Generator that Requires No External Components
· Two Software-Selectable Clock Speeds
·10-kHz or 8-kHz Speech Sample Rate



Pinout

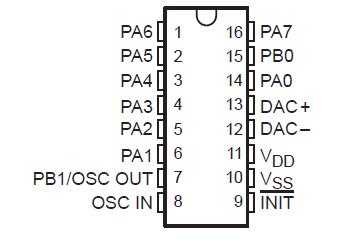

  Connection Diagram


Specifications

Supply voltage range, VDD (see Note 1) .................... 0.3 V to 8 V
Supply current, IDD or ISS (see Note 2) ........................100 mA
Input voltage range, VI (see Note 1)   .................0.3 V to VDD + 0.3 V
Output voltage range, VO (see Note 1 ) ................ 0.3 V to VDD + 0.3 V
Storage temperature range ........................ 30°C to 125°C



Description

The MSP50C32 uses a revolutionary architecture to combine an 8-bit microprocessor, two speech synthesizers, ROM, RAM, and I/O in a low-cost single-chip system. The architecture uses the same arithmetic logic unit (ALU) for the two synthesizers and the microprocessor, thus reducing chip area and cost and enabling the microprocessor to do a multiply operation in 0.8 ms. The MSP50C32 features two independent channels of linear predictive coding (LPC), which synthesize high-quality speech at a low data rate. Pulse-code modulation (PCM) can produce music or sound effects. LPC and PCM of MSP50C32 can be added together to produce a composite result. For more information, see the MSP50x3x User's Guide (literature number SPSU006).
