Product Details

Description



Features:

• Internal control latches and address decoder
• Short set-up and hold times
• Wide operating voltage: 4.5V to 14.5V
• 3.5Vpp analog signal capability
• RON 65 max. @ VDD=14V, 25
•RON 10 @ VDD=14V, 25
• Full CMOS switch for low distortion
• Minimum feedthrough and crosstalk
• Low power consumption ISO-CMOS technology


Application

• PBX systems
• Mobile radio
• Test equipment /instrumentation
• Analog/digital multiplexers
• Audio/Video switching


Pinout

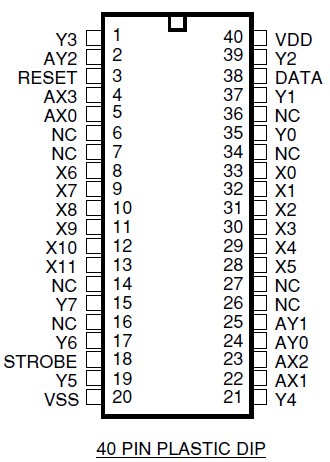

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Units
Supply Voltage
VDD
VSS
-0.3
-0.3
16.0
VDD+0.3
V
V
Analog Input Voltage
VINA
-0.3
VDD+0.3
V
Digital Input Voltage
VIN
VSS-0.3
VDD+0.3
V
Current on any I/O Pin
I
±15
mA
Storage Temperature
TS
-65
+150
°C
Package Power Dissipation PLASTIC DIP
PD
0.6
W



Description

The Zarlink MT093AP is fabricated in Zarlink's ISOCMOS technology providing low power dissipation and high reliability. The MT093AP contains a 8x12 array of crosspoint switches along with a 7 to 96 line decoder and latch circuits. Any one of the 96 switches can be addressed by selecting the appropriate seven input bits. The selected switch MT093AP can be turned on or off by applying a logical one or zero to the DATA input.
