Part Number: MT90733
Description: The MT90733 DS3 Framer (DS3F) is designed for mapping broadband payloads into the DS3 frame format, wh...
- Table of contents:
MT90733
-
Suppliers
DataSheet
General Description
MT90733 General Description
The MT90733 DS3 Framer (DS3F) is designed for mapping broadband payloads into the DS3 frame format, which meets ANSI's T1.107-1988 and supplement T1.107a-1990.
Although the C-bit parity format is recommended, the DS3F can also operate in the M13 mode. In the C-bit parity format, the DS3F provides a separate interface for selected C-bits. The DS3F also provides software access for transmitting and receiving the FEAC channel, and generates and detects DS3 AIS, DS3 idle, Pbit parity and C-bit parity. In addition, performance counters are provided, as well as the ability to generate single framing, FEBE, C-bit parity and P-bit parity errors. The payload interface is selectable through software as either a bit-serial or nibble-parallel format.
MT90733 Features
• DS3 payload access in either bit-serial or nibble-parallel mode
• C-bit parity or M13 operating mode
• Separate interface for C-bits
• Detect and generate DS3 AIS, and idle signals
• Transmit reference generator for serial operation
• Transmit and receive FEAC channel under software control
• Transmit single errors: framing, FEBE, C-bit parity, and P-bit parity
• FEBE, C-bit and P-bit performance counters
• Transmit-to-Receive and Receive-to-Transmit loopbacks
• C-bit parity or M13 operating mode
• Separate interface for C-bits
• Detect and generate DS3 AIS, and idle signals
• Transmit reference generator for serial operation
• Transmit and receive FEAC channel under software control
• Transmit single errors: framing, FEBE, C-bit parity, and P-bit parity
• FEBE, C-bit and P-bit performance counters
• Transmit-to-Receive and Receive-to-Transmit loopbacks
MT90733 Typical Application
• Subrate multiplexing
• Wideband data or video transport
• DS3 monitor and test
• Channel extenders
• Wideband data or video transport
• DS3 monitor and test
• Channel extenders

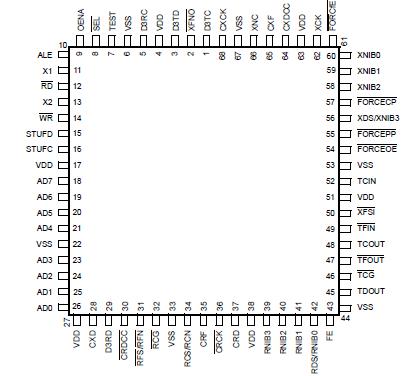

MT90733 Connection Diagram
