Part Number: MTD1361F



MFG: SHINDENG..







Urgent Purchase

MTD1361F Maximum Ratings

Parameter
Symbol
Rating
Unit
Logic input voltage
VIN
-0.3 to 6

V
DMOS output breakdown voltage
VDSS
68
V
Flywheel diode voltage
VR
68
V
Output current

ID
1.2
A
Flywheel diode current
IF
1.2
A
Power dissipation*
PT
5
W
Strage temperature range
Tstg
-40 to 150

Junction temperature range
Tj
150

                                *Mounted on glass epoxy board (50.8*50.8*1mm)

MTD1361F Features

·Unipolar drive system
·DMOS output (low loss and low generation of heat)
·TTL and CMOS compatible gate
·4-phase input (simultaneous ON prevention function)
·Constant current control
·Integrated flywheel diodes and no external Zener diode needed
·Surface mount type package with heatsink (HSOP28)

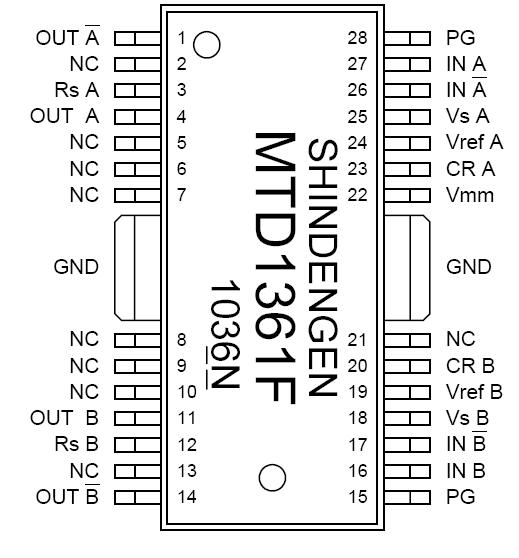

MTD1361F Connection Diagram

MTD1361F Connection Diagram
