Part Number: MTD2003



MFG: SHINDENGEN

Package Cooled: ZIP-27

D/C: 0416+



Urgent Purchase

MTD2003 Maximum Ratings

Item
Symbol
Ratings
Unit
Output Voltage
VCEO(SUS)
30
V
Output Current
IO
1.2
A
Logic Supply Voltage
VCC
0~6
V
Logic Input Voltage
VIN
0~VCC
V
Total Power Dissipation
PT
3
W
Junction Temperature
Tj
150
Storage Temperature
Tstg
-40~150

MTD2003 Features

·Constant-current chopping function (Frequency fixed, separate-oscillation)
·4-phase input (with inhibit for simultaneously turn ON)
·Current levels can be selected in 2 bit digital signal
·A noise cancel function is provided (No externally attached filter needed)
·Protection for penetration current
·Built-in flywheel diodes

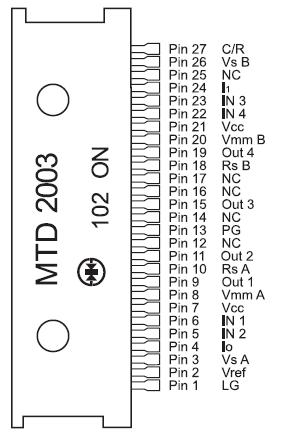

MTD2003 Connection Diagram

MTD2003 Connection Diagram

MTD2003 datasheet

MTD2003
PDF/DataSheet Download

  • Datasheet: MTD2003
  • File Size: 436076 KB
  • Manufacturer: SHINDENGEN [Shindengen Electric Mfg.Co.Ltd]
  • Click here to Download
