Part Number: MTL6400U
Description: The MTL6400U contains a gallium aluminum arsenide LED optically coupled to a silicon photodarlington detector. The opto...
- Table of contents:
MTL6400U
-
Suppliers
DataSheet
General Description
MTL6400U General Description
The MTL6400U contains a gallium aluminum arsenide LED optically coupled to a silicon photodarlington detector. The optocoupler is built in a 6-pin leadless chip carrier. This optocoupler is capable of transmitting signals between two galvanic sources. The potential difference between transmitter and receiver should not go over the maximum isolation voltage. Also available screened to MIL-STD-883.
MTL6400U Maximum Ratings
Input Diode
Peak Forward Input Current (Value applies for tw < 1ms, 500 pps) ....20mA
Average Input Current, IF (Note 1).......................................................10mA
Reverse Input Voltage, VR.........................................................................5V
Output Photodetector
Output Current, IO................................................................................40mA
Output Voltage, VO.....................................................................-0.5V to 18V
Supply Voltage, VCC.....................................................................0.5V to 20V
Output Power Dissipation (Note 2).......................................................75mW
Storage Temperature....................................................... -65°C to +150°C
Operating Free-Air Temperature Range............................-55°C to +125°C
Lead Solder Temperature (vapor phase reflow for 30 sec.) ...............215°C
Notes:
1. Derate IF at 0.66mA/°C above 110°C
2. Output power is collector output power plus one half of the total supply power. Derate at 5mW/°C above 110°C.
Peak Forward Input Current (Value applies for tw < 1ms, 500 pps) ....20mA
Average Input Current, IF (Note 1).......................................................10mA
Reverse Input Voltage, VR.........................................................................5V
Output Photodetector
Output Current, IO................................................................................40mA
Output Voltage, VO.....................................................................-0.5V to 18V
Supply Voltage, VCC.....................................................................0.5V to 20V
Output Power Dissipation (Note 2).......................................................75mW
Storage Temperature....................................................... -65°C to +150°C
Operating Free-Air Temperature Range............................-55°C to +125°C
Lead Solder Temperature (vapor phase reflow for 30 sec.) ...............215°C
Notes:
1. Derate IF at 0.66mA/°C above 110°C
2. Output power is collector output power plus one half of the total supply power. Derate at 5mW/°C above 110°C.
MTL6400U Features
• High Reliability
• High Current Ration: 300% Typical
• Rugged surface mount package
• Low Input current requirement: 0.5mA
• +1.5kV electrical isolation
• High Current Ration: 300% Typical
• Rugged surface mount package
• Low Input current requirement: 0.5mA
• +1.5kV electrical isolation
MTL6400U Typical Application
• Military and Space
• Level shifting
• Line receiver
• Switching power supplies
• Communication Systems
• Level shifting
• Line receiver
• Switching power supplies
• Communication Systems
MTL6400U
PDF/DataSheet Download
- Datasheet: MTL6400U
- File Size: 68182 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·MTL004
- ETC [ETC]
- XGA Flat Panel Controller
- 370335 KB
- ·MTL005
- ETC [ETC]
- XGA Flat Panel Controller
- 362332 KB
- ·MTL011
- 51383 KB
- ·MTL5113P
- ETC [ETC]
- SWITCH/PROXIMITY DETECTOR INTERFACE
- 55819 KB
- ·MTL5114P
- ETC [ETC]
- SWITCH/PROXIMITY DETECTOR INTERFACE
- 55819 KB
- ·MTL5521
- ETC [ETC]
- FREQUENCY TO CURRENT CONVERTER AND TRIP AMPLIFIER
- 29481 KB
- ·MTL6400U.001.A
- ETC [ETC]
- SINGLE CHANNEL OPTOCOUPLER
- 68182 KB
- ·MTL6400U.001.S
- ETC [ETC]
- SINGLE CHANNEL OPTOCOUPLER
- 68182 KB
MTL6400U Relative Products
MTL5521
The MTL5521 converts a frequency or rotational speed signal from a proximity detector located in the hazardous area into a 0/420mA current signal suitable for driving safe area loads. A display located on the top indicates the frequency. The analogue output ...
MTL5113P
With the MTL5113P/5114P, a fail-safe switch/proximity detector located in the hazardous area can control an isolated fail-safe electronic output. The MTL5113P units provide line-fault detection alarm contacts. The MTL5113P and MTL5114P are for use with P + F...
MTL5074
The MTL5074 converts a low-level dc signal from a temperature sensor mounted in a hazardous area into a 4/20mA current for driving a safe-area load. Software selectable features include linearisation, ranging, monitoring, testing and tagging for eight thermo...

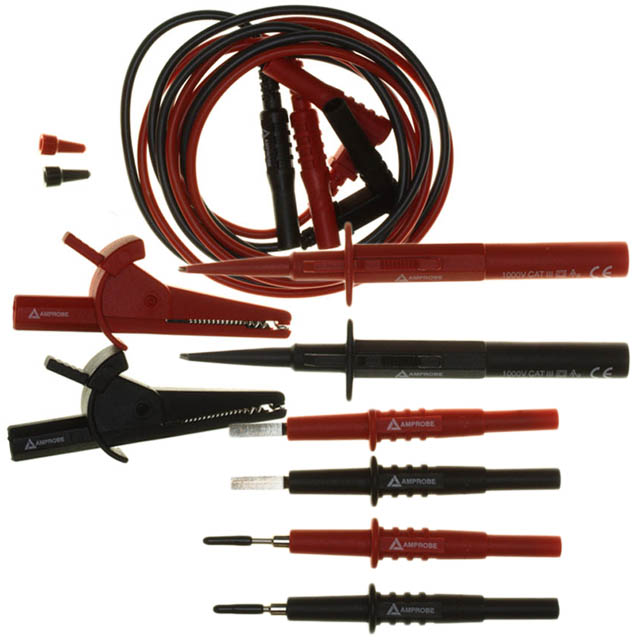

MTL-501
TEST LEAD KIT ADV ELECTRICAL

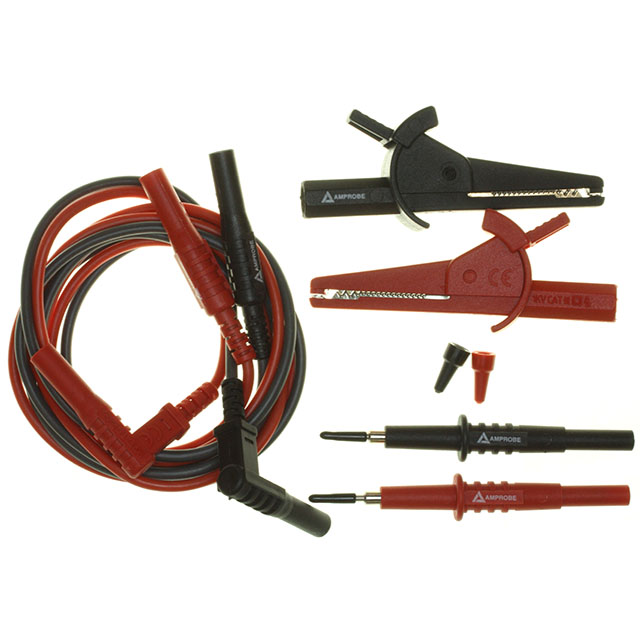

MTL-500
