MTV016

Features:

·Horizontal SYNC input up to 100 KHz.
·On-chip PLL circuitry up to a 90 MHz pixel rate for multi-SYNC operation.
·Programmable horizontal resolutions up to 1524 dots per display row.
·538-byte display registers to control full screen display.
·Full screen display consists of 10 (rows) by 24 (columns) characters.
·12 x 18 dot matrix per character.
·128 built-in characters and graphic symbols, and character by character color selection.
·Maximum of 8 colors selectable per display row.
·Double character height and/or width control.
·Programmable positioning for display screen center.
·Bordering and shadowing effect for display.
·Programmable vertical character height  (18 to 71 lines) for multi-SYNC operation.
·4 programmable background windows with multi-level windowing effect.
·Software clear function for display frame buffer.
·HSYNC and VSYNC input polarity selectable.
·Auto detection for input edge distortion between HSYNC and VSYNC inputs.
·Half tone and fast blanking output.
·Software force blank function for display frame.
·Compatible with both SPI bus and I² C interface through pin selection.
·16-pin PDIP package.

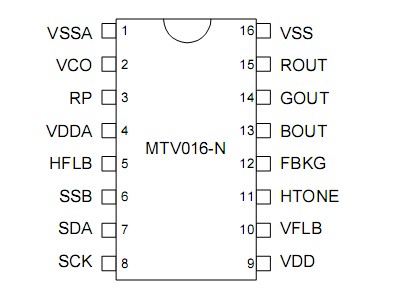

Pinout




Specifications

DC Supply Voltage (VDD, VDDA)..................-0.3 to +7 V
Voltage with respect to Ground .......-0.3 to VDD+0.3 V
Storage Temperature ............................-65 to +150
Ambient Operating Temperature .................0 to +70


Description

MTV016 is designed for use in monitor applications to display the built-in characters or symbols onto a monitor screen. The display operation occurs by transferring data and control information in the micro- controller to RAM through a serial data interface. MTV016 can execute a full screen display automatically and specific functions such as character bordering, shadowing, double height and width, font by font color control, frame positioning, frame size control by character height and horizontal display resolution, and windowing effect.
