Part Number: MTV230M64
Description: The MTV230M64 micro-controller is an 8051 CPU core embedded device specially tailored to LCD Monitor applications. It i...
- Table of contents:
MTV230M64
-
Suppliers
DataSheet
General Description
MTV230M64 General Description
The MTV230M64 micro-controller is an 8051 CPU core embedded device specially tailored to LCD Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, OSD controller, 4 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter, a 64K-byte internal program Flash-ROM and a 9K-word internal OSD character Flash-ROM.
MTV230M64 Maximum Ratings
at: Ta= 0 to 70 , VSS=0V
|
Name |
Symbol |
Range |
Unit |
| Maximum Supply Voltage Maximum Input Voltage Maximum Output Voltage Maximum Operating Temperature Maximum Storage Temperature |
VDD Vin Vout Topg Tstg |
-0.3 to +6.0 0.3 to VDD+0.3 0.3 to VDD+0.3 0 to +70 -25 to +125 |
V V V oC oC |
MTV230M64 Features
·8051 core, 12MHz operating frequency with double CPU clock option, 3.3V power supply.
·1024-byte RAM, 64K-byte program Flash-ROM.
·Maximum 4 channels of 5V open-drain PWM DAC.
·Maximum 32 bi-directional I/O pins.
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustmen
·Built-in low power reset circuit.
·Compliant with VESA DDC2B/2Bi/2B+ standard.
·Dual slave IIC addresses.
·Single master IIC interface for internal device communication.
·Maximum 4-channel 6-bit ADC.
·Watchdog timer with programmable interval.
·OSD controller features:
. Full-screen display consists of 15 (rows) by 30 (columns) characters.
. Programmable OSD menu positioning for display screen center.
. 512 Flash-ROM fonts, with 12x18 dot matrix, including 480 standard fonts and 32 multi-color fonts.
. 15 character foreground color and 7 character background color selectable character by character.
. Character (per row) and window intensity control.
. Character bordering, shadowing and blinking effect.
. Character height control (18 to 71 lines), double height and/or width control.
. 4 programmable windows with multi-level operation and programmable shadowing width/height/color.
·In System Programming function (ISP).
·42-pin SDIP or 44-pin PLCC/QFP package.
·1024-byte RAM, 64K-byte program Flash-ROM.
·Maximum 4 channels of 5V open-drain PWM DAC.
·Maximum 32 bi-directional I/O pins.
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustmen
·Built-in low power reset circuit.
·Compliant with VESA DDC2B/2Bi/2B+ standard.
·Dual slave IIC addresses.
·Single master IIC interface for internal device communication.
·Maximum 4-channel 6-bit ADC.
·Watchdog timer with programmable interval.
·OSD controller features:
. Full-screen display consists of 15 (rows) by 30 (columns) characters.
. Programmable OSD menu positioning for display screen center.
. 512 Flash-ROM fonts, with 12x18 dot matrix, including 480 standard fonts and 32 multi-color fonts.
. 15 character foreground color and 7 character background color selectable character by character.
. Character (per row) and window intensity control.
. Character bordering, shadowing and blinking effect.
. Character height control (18 to 71 lines), double height and/or width control.
. 4 programmable windows with multi-level operation and programmable shadowing width/height/color.
·In System Programming function (ISP).
·42-pin SDIP or 44-pin PLCC/QFP package.

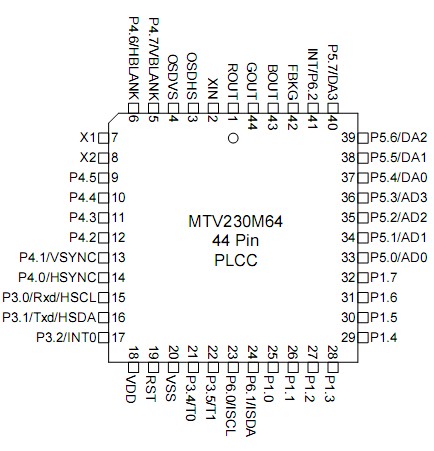

MTV230M64 Connection Diagram
MTV230M64
