Part Number: MTV412M
Description: The MTV412M micro-controller is an 8051 CPU core embedded device targeted for LCD Monitor, LCD TV or s...
- Table of contents:
MTV412M
-
Suppliers
DataSheet
General Description
MTV412M General Description
The MTV412M micro-controller is an 8051 CPU core embedded device targeted for LCD Monitor, LCD TV or smart panel applications. It includes an 8051 CPU core, 1024-byte SRAM, on-chip 16K-bit EEPROM, 14 PWM DACs, VESA DDC for both D-sub and DVI interfaces, 4-channel 8-bit ADC, hardware ISP without boot code and a 128K-byte internal program Flash-ROM in 42-pin SDIP, 44-pin PLCC/PQFP package.
MTV412M Maximum Ratings
| Name | Symbol | Range | Unit |
| Maximum Supply Voltage | VDD | -0.3 to +6.0 | V |
| Maximum Input Voltage (HSYNC, VSYNC & open-drain pins) |
Vin1 | -0.3 to 5V+0.3 | V |
| Maximum Input Voltage (other pins) | Vin2 | -0.3 to VDD+0.3 | V |
| Maximum Output Voltage | Vout | -0.3 to VDD+0.3 | V |
| Maximum Operating Temperature | Topg | 0 to +70 | |
| Maximum Storage Temperature | Tstg | -25 to +125 |
MTV412M Features
• 8051 core, 12MHz operating frequency with double CPU clock option
• 0.35um process; 3.3V/5V power supply; 5V I/O tolerant
• 1024-byte RAM; 128K-byte program Flash-ROM support In System Programming (ISP) without boot code
• Maximum 14 channels of PWM DAC
• Maximum 38 (44-pin) or 36 (42-pin) I/O pins
• SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment
• Clock output to drive other devices
• Built-in low power reset circuit
• Compliant with VESA DDC1/2B/2Bi/2B+ standard
• Triple slave IIC addresses; two H/W auto transfer DDC1/DDC2x data for both D-sub and DVI interfaces
• Single master IIC interface for internal device communication
• Maximum 4-channel 8-bit A/D converter
• Flash-ROM program code protection selection
• 42-pin SDIP or 44-pin PLCC/PQFP package
• 0.35um process; 3.3V/5V power supply; 5V I/O tolerant
• 1024-byte RAM; 128K-byte program Flash-ROM support In System Programming (ISP) without boot code
• Maximum 14 channels of PWM DAC
• Maximum 38 (44-pin) or 36 (42-pin) I/O pins
• SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment
• Clock output to drive other devices
• Built-in low power reset circuit
• Compliant with VESA DDC1/2B/2Bi/2B+ standard
• Triple slave IIC addresses; two H/W auto transfer DDC1/DDC2x data for both D-sub and DVI interfaces
• Single master IIC interface for internal device communication
• Maximum 4-channel 8-bit A/D converter
• Flash-ROM program code protection selection
• 42-pin SDIP or 44-pin PLCC/PQFP package

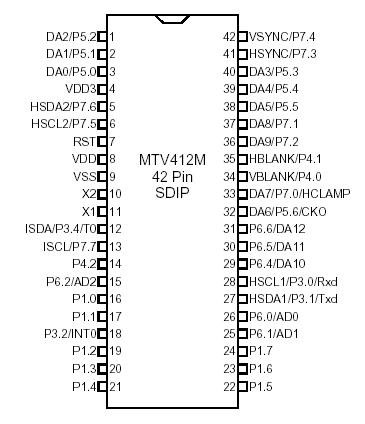

MTV412M Connection Diagram
MTV412M
