Part Number: MTV412MV128
Package Cooled: PLCC
Description: The MTV412M micro-controller is an 8051 CPU core embedded device targeted for LCD Monitor, LCD TV or s...
- Table of contents:
MTV412MV128
-
Suppliers
DataSheet
General Description
MTV412MV128 General Description
The MTV412M micro-controller is an 8051 CPU core embedded device targeted for LCD Monitor, LCD TV or smart panel applications. It includes an 8051 CPU core, 1024-byte SRAM, on-chip 16K-bit EEPROM, 14 PWM DACs, VESA DDC for both D-sub and DVI interfaces, 4-channel 8-bit ADC, hardware ISP without boot code and a 128K-byte internal program Flash-ROM in 42-pin SDIP, 44-pin PLCC/PQFP package.
MTV412MV128 Maximum Ratings
at: Ta= 0 to 70, VSS=0V
|
Name |
Symbol |
Range |
Unit |
| Maximum Supply Voltage Maximum Input Voltage (HSYNC, VSYNC & open-drain pins) Maximum Input Voltage Maximum Output Voltage Maximum Operating Temperature Maximum Storage Temperature |
VDD Vin1 Vin Vout Topg Tstg |
-0.3 to +6.0 -0.3 to 5V+0.3 0.3 to VDD+0.3 0.3 to VDD+0.3 0 to +70 -25 to +125 |
V V V V oC oC |
MTV412MV128 Features
·8051 core, 12MHz operating frequency with double CPU clock option
·0.35um process; 3.3V/5V power supply; 5V I/O tolerant
·1024-byte RAM; 128K-byte program Flash-ROM support In System Programming (ISP) without boot code
·Maximum 14 channels of PWM DAC
·Maximum 38 (44-pin) or 36 (42-pin) I/O pins
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment
·Clock output to drive other devices
·Built-in low power reset circuit
·Compliant with VESA DDC1/2B/2Bi/2B+ standard
·Triple slave IIC addresses; two H/W auto transfer DDC1/DDC2x data for both D-sub and DVI interfaces
·Single master IIC interface for internal device communication
·Maximum 4-channel 8-bit A/D converter
·Flash-ROM program code protection selection
·42-pin SDIP or 44-pin PLCC/PQFP package
·0.35um process; 3.3V/5V power supply; 5V I/O tolerant
·1024-byte RAM; 128K-byte program Flash-ROM support In System Programming (ISP) without boot code
·Maximum 14 channels of PWM DAC
·Maximum 38 (44-pin) or 36 (42-pin) I/O pins
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment
·Clock output to drive other devices
·Built-in low power reset circuit
·Compliant with VESA DDC1/2B/2Bi/2B+ standard
·Triple slave IIC addresses; two H/W auto transfer DDC1/DDC2x data for both D-sub and DVI interfaces
·Single master IIC interface for internal device communication
·Maximum 4-channel 8-bit A/D converter
·Flash-ROM program code protection selection
·42-pin SDIP or 44-pin PLCC/PQFP package

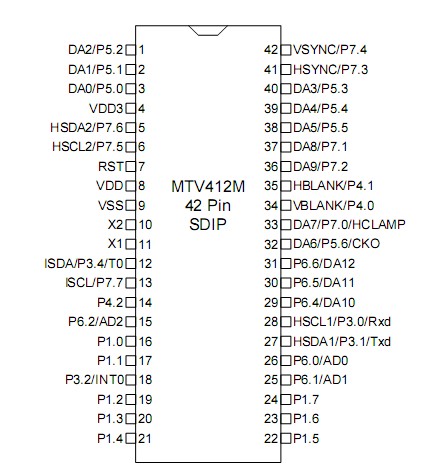

MTV412MV128 Connection Diagram
MTV412MV128
