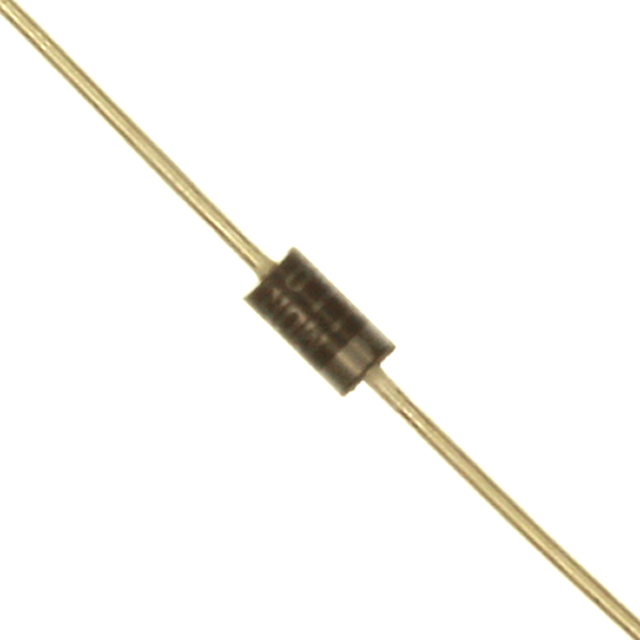

MUR115 Product Image

MUR Series Datasheet download

Five Points

Part Number: MUR115



MFG: ON

Package Cooled: 05+



Description: The MUR120 series of SWITCHMODE power rectifiers are designed for use in switching power supplies, inverters and as fre...


Urgent Purchase

MUR115 General Description


The MUR120 series of SWITCHMODE power rectifiers are designed for use in switching power supplies, inverters and as free wheeling diodes.

MUR115 Maximum Ratings

Rating
SYMBOL
MUR
Units
105
110
115
120
130
140
160
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRMS
VR
50
100
150
200
300
400
600
V
Average Rectified Forward Current
(Square Wave Mounting Method #3 Per Note 1)
IF(AV)
1.0 @ TA = 130°C
1.0 @ TA = 120°C
A
Nonrepetitive Peak Surge Current
(Surge applied at rated load conditions, halfwave,
single phase, 60 Hz)
IFSM
35
A
Operating Junction Temperature and
Storage Temperature
TJ, Tstg
-65 to +175
°C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.

MUR115 Features

• Ultrafast 25, 50 and 75 Nanosecond Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Pb−Free Packages are Available*
