Part Number: MX10EXA
Description: The MX10EXA is a member of Philips' 80C51 XA (eXtended Architecture) family of high performance 16- bi...
- Table of contents:
MX10EXA
-
Suppliers
DataSheet
General Description
MX10EXA General Description
The MX10EXA is a member of Philips' 80C51 XA (eXtended Architecture) family of high performance 16- bit single-chip microcontrollers.
The MX10EXA contains 64k bytes of Flash program memory, and provides three general purpose timers/ counters, a watchdog timer, dual UARTs, and four general purpose I/O ports with programmable output configurations.
A default serial loader program in the Boot ROM allows In-System Programming (ISP) of the Flash memory without the need for a loader in the Flash code. User programs may erase and reprogram the Flash memory at will through the use of standard routines contained in the Boot ROM (In-Application Programming).
MX10EXA Maximum Ratings
| PARAMETER | RATING | UNIT |
| Operating temperature under bias | -55 to + 125 | |
| Storage temperature range | -65 to + 150 | |
| Voltage on EA/VPP pin to VSS | 0 to + 13.0 | V |
| Voltage on any other pin to VSS | 0.5 to VDD + 0.5V | V |
| Maximum IOL per I/O pin | 15 | mA |
|
Power dissipation (based on package heat transfer limitations, not device power consumption) |
1.5 | w |
MX10EXA Features
• 4.5V to 5.5V
• 64K bytes of on-chip Flash program memory with In- System Programming capability
• Five Flash blocks = two 8k byte blocks and three 16k byte blocks
• Single supply voltage In-System Programming of the Flash memory, (VPP=VDD or VPP=12V ifdesired)
• Boot ROM contains low level Flash programming routines for In-Application Programming and a default serial loader using the UART
• 2048 bytes of on-chip data RAM
• Supports off-chip program and data addressing up to 1 megabyte (20 address lines)
• Three standard counter/timers with enhanced features All timers have a toggle output capability
• Watchdog timer
• Two enhanced UARTs with independent baud rates
• Seven software interrupts
• Four 8-bit I/O ports, with 4 programmable output configurations for each pin
• 30 MHz operating frequency at 5V
• Power saving operating modes: Idle and Power- Down.Wake-Up from power-down via an external interrupt is supported.
• 44-pin PLCC (MX10EXAQC) and 44-pin LQFP (MX10EXAUC) packages

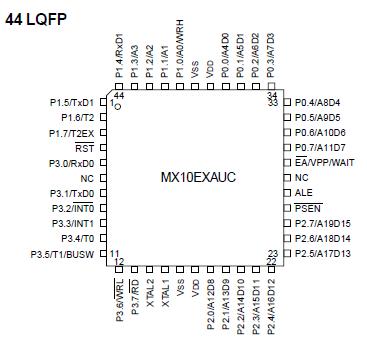

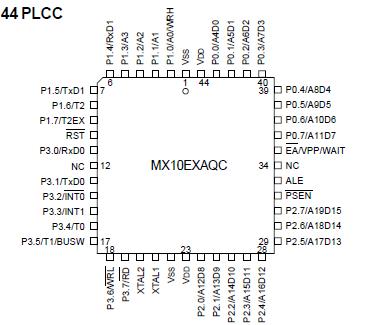

MX10EXA Connection Diagram
MX10EXA
PDF/DataSheet Download
- Datasheet: MX10EXA
- File Size: 311275 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
