Part Number: MX23C1611











Urgent Purchase

MX23C1611 Maximum Ratings

Item
Symbol
Ratings
Voltage on any Pin Relative to VSS
VIN
-1.3V to VCC+2.0V (Note)
Ambient Operating Temperature
Topr
-40 to 85
Storage Temperature
Tstg
-65 to 125

Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.

MX23C1611 Features

• Bit organization
    - 2M x 8 (byte mode)
    - 1M x 16 (word mode)
• Fast access time
    - Random access: 100ns (max.)
    - Page access: 50ns (max.)
• Page Size
    - 8 double words per page
• Current
    - Operating: 60mA
    - Standby: 100uA
• Supply voltage
    - 5V±10%
• Package
    - 44 pin SOP (500mil)
    - 42 pin PDIP (600mm)
    - 48 pin TSOP (20mm x 12mm)

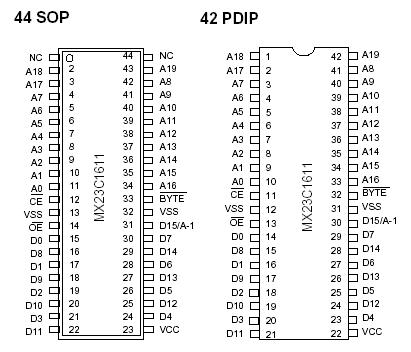

MX23C1611 Connection Diagram

MX23C1611 Connection Diagram
