Purchase MX23L3210MC-10, In-stock MX23L3210MC-10 From SeekIC.
MFG:MX Package Cooled:SOP D/C:2000+
- Table of contents:
MX23L3210MC-10
-
Suppliers
DataSheet
General Description
MX23L3210MC-10 Maximum Ratings
| Item | Symbol | Ratings |
| Voltage on any Pin Relative to VSS | VIN | -0.3V to 3.9V |
| Ambient Operating Temperature | Topr | 0° C to 70°C |
| Storage Temperature | Tstg | -65° C to 125°C |
MX23L3210MC-10 Features
• Bit organization
- 4M x 8 (byte mode)
- 2M x 16 (word mode)
• Fast access time
- Random access:70ns (max.) for 3.0V~3.6V
90ns (max.) for 2.7V~3.6V
• Current
- Operating:40mA
- Standby:15uA
• Supply voltage
- 2.7V~3.6V
• Package
- 44 pin SOP (500mil)
- 48 pin TSOP (12mm x 20mm)
- 44 pin TSOP (Type II
- 4M x 8 (byte mode)
- 2M x 16 (word mode)
• Fast access time
- Random access:70ns (max.) for 3.0V~3.6V
90ns (max.) for 2.7V~3.6V
• Current
- Operating:40mA
- Standby:15uA
• Supply voltage
- 2.7V~3.6V
• Package
- 44 pin SOP (500mil)
- 48 pin TSOP (12mm x 20mm)
- 44 pin TSOP (Type II

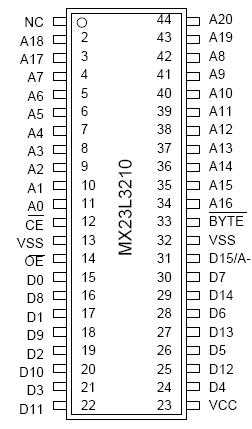

MX23L3210MC-10 Connection Diagram
MX23L3210MC-10
PDF/DataSheet Download
- Datasheet: MX23L3210MC-10
- File Size: 781816 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
