Part Number: MX27C256
Description: The MX27C256 is a 5V only, 256K-bit, ultraviolet Eras-able Programmable Read Only Memory. It is ...
- Table of contents:
MX27C256
-
Suppliers
DataSheet
General Description
MX27C256 General Description
The MX27C256 is a 5V only, 256K-bit, ultraviolet Eras-able Programmable Read Only Memory. It is organized as 32K by 8 bits, operates from a single + 5volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. For programming from outside the system, existingEPROM programmers may be used. The MX27C256 supports intelligent fast programming algorithm which can result in programming time of less than ten seconds.
This EPROM is packaged in industry standard 28 pin dual-in-line packages, 32 lead PLCC, and 28 lead TSOP(I) packages.
MX27C256 Maximum Ratings
|
RATING |
VALUE |
|
Ambient Operating Temperature |
|
|
Storage Temperature |
|
|
Applied Input Voltage |
-0.5V to 7.0V |
|
Applied Output Voltage |
-0.5V to VCC + 0.5V |
|
VCC to Ground Potential |
-0.5V to 7.0V |
|
A9 & Vpp |
-0.5V to 13.5V |
MX27C256 Features
. 32K x 8 organization
. Single +5V power supply
. +12.5V programming voltage
. Fast access time: 45/55/70/90/100/120/150 ns
. Totally static operation
. Completely TTL compatible
. Operating current: 30mA
. Standby current: 100uA
. Package type:
- 28 pin plastic DIP
- 32 pin PLCC
- 28 pin 8 x 13.4mm TSOP(I)
. Single +5V power supply
. +12.5V programming voltage
. Fast access time: 45/55/70/90/100/120/150 ns
. Totally static operation
. Completely TTL compatible
. Operating current: 30mA
. Standby current: 100uA
. Package type:
- 28 pin plastic DIP
- 32 pin PLCC
- 28 pin 8 x 13.4mm TSOP(I)

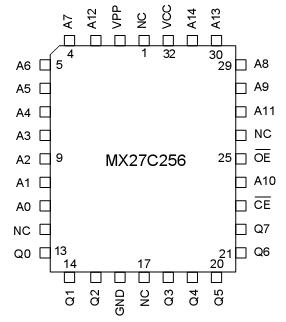

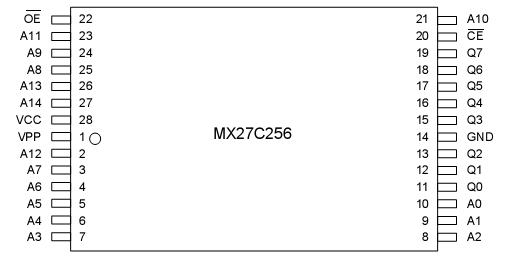

MX27C256 Connection Diagram
MX27C256
