Features:

• 15 ps Typical Output-to-Output Skew
• 40 ps Typical Device-to- Device Skew
• Jitter Less than 2 ps RMS
• Maximum Frequency > 1.0 GHz Typical
• Thermally Enhanced 52-Lead LQFP
• VBB Output
• 540 ps Typical Propagation Delay
• LVPECL and HSTL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V
• NECL Mode Operating Range: VCC = 0 V with VEE = -2.375 V to -3.8 V
• Q Output will Default Low with Inputs Open or at VEE
• Pin Compatible with Motorola MC100EP221



Pinout

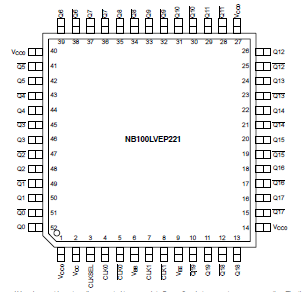

  Connection Diagram

  Connection Diagram




Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC
PECL Mode Power Supply
GEE = 0 V
6
V
VEE
NECL Mode Power Supply
GCC = 0 V
-6
V
VI
PECL Mode Input Voltage
NECL Mode Input Voltage
GEE = 0 V
GCC = 0 V
VI VCC
VI VEE
6-6
V
V
Iout
Output Current
Continuous
Surge
50
100
mA
mA
IBB
VBB Sink/Source
±0.5
mA
TA
Operating Temperature Range
−40 to +85
Tstg
Storage Temperature Range
−65 to +150
JA
Thermal Resistance (Junction−to−Ambient)
JEDEC 51−3 (1S − Single Layer Test Board)
0 lfpm
500 lfpm
52 LQFP
52 LQFP
35.6
30
/W
/W
JC
Thermal Resistance (Junction−to−Ambient)
JEDEC 51−6 (2S2P−Multi Layer Test oard)
with Filled Thermal Vias
0 lfpm
500 lfpm
52 LQFP
52 LQFP
3.2
6.4
/W
/W
Tsol
Wave Solder
<2 to 3 sec @ 248°C
265

2. Maximum Ratings are those values beyond which device damage may occur.


Description

The NB100LVEP221 is a low skew 1-to-20 differential clock driver, designed with clock distribution in mind, accepting two clock sources into an input multiplexer. The two clock inputs are differential ECL/PECL; CLK1/CLK1 can also receive HSTL signal levels. The LVPECL input signals can be either differential configuration or single-ended (if the VBB output is used).

The NB100LVEP221 specifically guarantees low output-to-output skew. Optimal design, layout, and processing minimize skew within a device and from device to device.
To ensure tightest skew, both sides of differential outputs should be terminated identically into 50 even if only one output is being used. If an output pair is unused, both outputs may be left open (unterminated) without affecting skew.

The NB100LVEP221, as with most other ECL devices, can be operated from a positive VCC supply in LVPECL mode. This allows the LVEP221 to be used for high performance clock distribution in +3.3 V or +2.5 V systems. In a PECL environment, series or Thevenin line terminations are typically used as they require no additional power supplies. For more information on PECL terminations, designers should refer to Application Note AND8020/D.

The VBB pin, an internally generated voltage supply, is available to NB100LVEP221 only. For single- ended LVPECL input conditions, the unused differential input is connected to VBB as a switching reference voltage. VBB may also rebias AC coupled inputs. When used, decouple VBB and VCC via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, VBB should be left open.Single- ended CLK input operation is limited to a VCC . 3.0 V in LVPECL mode, or VEE 3 -3.0 V in NECL mode.
