Purchase NC7SZ32, In-stock NC7SZ32 From SeekIC.
Package Cooled:SOT23 D/C:08+
Part Number: NC7SZ32
Package Cooled: SOT23
D/C: 08+
Description: The NC7SZ32 is a single 2-Input OR Gate from Fairchild's Ultra High Speed Series of...
- Table of contents:
NC7SZ32
-
Suppliers
DataSheet
General Description
NC7SZ32 General Description
The NC7SZ32 is a single 2-Input OR Gate from Fairchild's Ultra High Speed Series of TinyLogicTM. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
NC7SZ32 Maximum Ratings
Supply Voltage (VCC) ......................−0.5Vto +6V
DC Input Voltage (VIN) ....................−0.5V to +6V
DC Output Voltage (VOUT) ...................−0.5V to +6V
DC Input Diode Current (IIK)
@VIN < −0.5V ...........................−50 mA
@VIN >6V ..............................+20 mA
DC Output Diode Current (IOK)
@VOUT< −0.5V ............................−50 mA
@VOUT >6V, (VCC = GND) ......................+20 mA
DC Output Current (IOUT) ......................±50 mA
DC VCC/GND Current (ICC/IGND) ...................±50 mA
Storage Temperature (TSTG) ...............−65°C to +150°C
Junction Temperature under Bias (TJ) ................150°C
Junction Lead Temperature (TL);
Soldering, 10 seconds ........................260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ...............................200 mW
SC70-5 ............................... 150 mW
DC Input Voltage (VIN) ....................−0.5V to +6V
DC Output Voltage (VOUT) ...................−0.5V to +6V
DC Input Diode Current (IIK)
@VIN < −0.5V ...........................−50 mA
@VIN >6V ..............................+20 mA
DC Output Diode Current (IOK)
@VOUT< −0.5V ............................−50 mA
@VOUT >6V, (VCC = GND) ......................+20 mA
DC Output Current (IOUT) ......................±50 mA
DC VCC/GND Current (ICC/IGND) ...................±50 mA
Storage Temperature (TSTG) ...............−65°C to +150°C
Junction Temperature under Bias (TJ) ................150°C
Junction Lead Temperature (TL);
Soldering, 10 seconds ........................260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ...............................200 mW
SC70-5 ............................... 150 mW
NC7SZ32 Features
`Space saving SOT23 or SC70 5-lead package
` Ultra small MicroPakTM leadless package
` Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC
` High output drive ±24 mA at 3V VCC
` Broad VCC operating range 1.65V5.5V
` Matches the performance of LCX when operated at 3.3V VCC
` Power down high impedance inputs/output
` Overvoltage tolerant inputs facilitate 5V3V translation
` Patented noise/EMI reduction circuitry implemented
` Ultra small MicroPakTM leadless package
` Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC
` High output drive ±24 mA at 3V VCC
` Broad VCC operating range 1.65V5.5V
` Matches the performance of LCX when operated at 3.3V VCC
` Power down high impedance inputs/output
` Overvoltage tolerant inputs facilitate 5V3V translation
` Patented noise/EMI reduction circuitry implemented

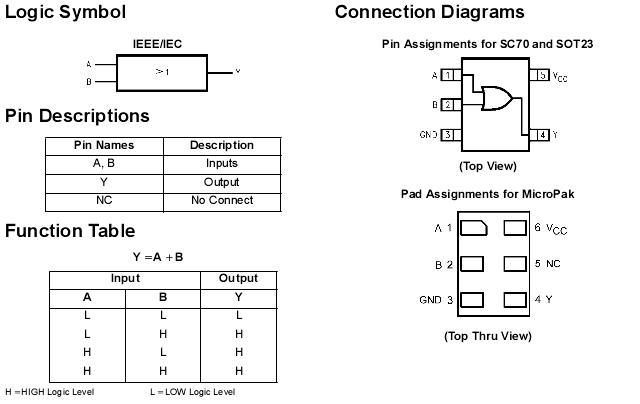

NC7SZ32 Connection Diagram
NC7SZ32
