NCP5316

Features: •Switching Regulator Controller.Programmable 4/5/6 Phase Operation.Lossless Current Sensing.Programmable Up to 1.0 MHz Switching Frequency Per Phase.0 to 100% Adjustment of Duty Cycle.Programmable Adaptive Voltage Positioning Reduces OutputCapacitor Requirements.Programmable Soft S...

product image

NCP5316 Picture
See larger image
SeekIC No. : 004433037 Detail

NCP5316: Features: •Switching Regulator Controller.Programmable 4/5/6 Phase Operation.Lossless Current Sensing.Programmable Up to 1.0 MHz Switching Frequency Per Phase.0 to 100% Adjustment of Duty Cycl...

NCP5316 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCP5316
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Switching Regulator Controller
.Programmable 4/5/6 Phase Operation
.Lossless Current Sensing
.Programmable Up to 1.0 MHz Switching Frequency Per Phase
.0 to 100% Adjustment of Duty Cycle
.Programmable Adaptive Voltage Positioning Reduces OutputCapacitor Requirements
.Programmable Soft Start
•Current Sharing
.Differential Current Sense Pins for Each Phase
.Current Sharing Within 10% Between Phases
•Protection Features
.Programmable Pulse−by−Pulse Current Limit for Each Phase
."111110" and "111111" DAC Code Fault
.Latching Off Overvoltage Protection
.Programmable Latch Overcurrent Protection
.Undervoltage Lockout
.Reference Undervoltage Lockout
.MOSFET Driver Control through Driver−On Signal
•System Power Management
.6−Bit DAC with 0.5% Tolerance
.Programmable Lower Power Good Threshold
.Power Good Output
.External Enable Control
.3.3 V Reference Voltage Output


Pinout

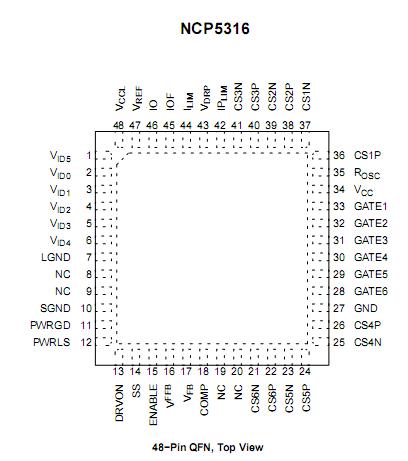

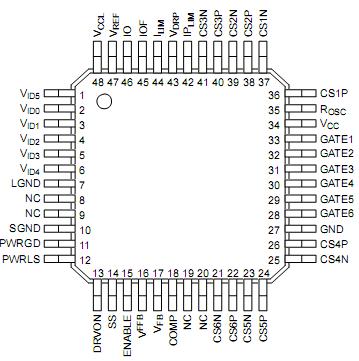

Connection Diagram Connection Diagram


Specifications

Rating

Value

Unit

Operating Junction Temperature

150

°C

Lead Temperature Soldering, Reflow (Note 1)

230 peak

°C

Storage Temperature Range

−65 to 150

°C

ESD Susceptibility:
Human Body Model (HBM)

2.0

kV

Moisture Sensitivity Level (MSL), LQFP

1

−

MSL, QFN

2

−

JA LQFP

52

°C/W

JA, QFN, Pad Soldered to PCB

34

°C/W




Pin Number Pin Symbol VMAX VMIN ISOURCE ISINK
15 ENABLE 18 V −0.3 V 1.0 mA 1.0 mA
1−6 VID0−VID5 18 V −0.3 V 1.0 mA 1.0 mA
7 LGND − − 50 mA −
8 NC NA NA NA NA
9 NC NA NA NA NA
10 SGND 1.0 V −1.0 V 1.0 mA −
11 PWRGD 18 V −0.3 V 1.0 mA 20 mA
12 PWRLS 7.0 V −0.3 V 1.0 mA 1.0 mA
13 DRVON 7.0 V −0.3 V 1.0 mA 1.0 mA
14 SS 7.0 V −0.3 V 1.0 mA 1.0 mA
16 VFFB 7.0 V −0.3 V 1.0 mA 1.0 mA
17 VFB 7.0 V −0.3 V 1.0 mA 1.0 mA
18 COMP 7.0 V −0.3 V 1.0 mA 1.0 mA
19 NC NA NA NA NA
20 NC NA NA NA NA
21 CS6N 18 V −0.3 V 1.0 mA 1.0 mA
22 CS6P 18 V −0.3 V 1.0 mA 1.0 mA
23 CS5N 18 V −0.3 V 1.0 mA 1.0 mA
24 CS5P 18 V −0.3 V 1.0 mA 1.0 mA
25 CS4N 18 V −0.3 V 1.0 mA 1.0 mA
26 CS4P 18 V −0.3 V 1.0 mA 1.0 mA
27 GND − − 0.4 A, 1.0s, 100 mA DC
−
28−33 GATE6−GATE1 18 V −0.3 V 0.1 A, 1.0s, 25 mA DC 0.1 A, 1.0s, 25 mA DC
34 VCC 18 V −0.3 V − 0.4 A, 1.0s, 100 mA DC
35 ROSC 7.0 V −0.3 V 1.0 mA 1.0 mA
36 CS1P 18 V −0.3 V 1.0 mA 1.0 mA
37 CS1N 18 V −0.3 V 1.0 mA 1.0 mA
38 CS2P 18 V −0.3 V 1.0 mA 1.0 mA
39 CS2N 18 V −0.3 V 1.0 mA 1.0 mA
40 CS3P 18 V −0.3 V 1.0 mA 1.0 mA




Pin Number

Pin Symbol

VMAX

VMIN

ISOURCE

ISINK

41

CS3N

18 V

−0.3 V

1.0 mA

1.0 mA

42

IPLIM

7.0 V

−0.3 V

1.0 mA

1.0 mA

43

VDRP

7.0 V

−0.3 V

1.0 mA

1.0 mA

44

ILIM

7.0 V

−0.3 V

1.0 mA

1.0 mA

45

IOF

7.0 V

−0.3 V

1.0 mA

1.0 mA

46

IO

7.0 V

−0.3 V

5.0 mA

1.0 mA

47

VREF

7.0 V

−0.3 V

5.0 mA

1.0 mA

48

VCCL

18 V

−0.3 V

−

50 mA
