NDH8320C

Features: `N-Channel 3 A, 20 V, RDS(ON) =0.06 @ VGS=4.5 V RDS(ON) =0.075 @ VGS=2.7 V P-Channel -2A, -20V, RDS(ON) =0.13 @ VGS=-4.5 V RDS(ON)=0.19 @ VGS=-2.7 V.`Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities.`High density cell design...

product image

NDH8320C Picture
See larger image
SeekIC No. : 004433215 Detail

NDH8320C: Features: `N-Channel 3 A, 20 V, RDS(ON) =0.06 @ VGS=4.5 V RDS(ON) =0.075 @ VGS=2.7 V P-Channel -2A, -20V, RDS(ON) =0.13 @ VGS=-4.5 V RDS(ON)=0.19 @ VGS=-2.7 V.`Proprietary SuperSOTTM-8 package desig...

NDH8320C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NDH8320C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`N-Channel 3 A, 20 V, RDS(ON) =0.06 @ VGS=4.5 V RDS(ON) =0.075 @ VGS=2.7 V P-Channel -2A, -20V, RDS(ON) =0.13 @ VGS=-4.5 V RDS(ON)=0.19 @ VGS=-2.7 V.
`Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities.
`High density cell design for extremely low RDS(ON).
`Exceptional on-resistance and maximum DC current capability.


Pinout

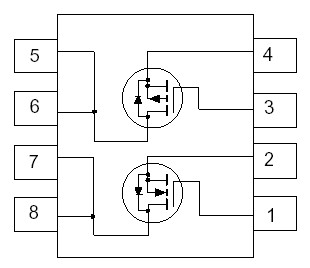

Connection Diagram


Specifications

Symbol
Parameter

N-Channel

P-Channel
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage - Continuous
20
8
3
15
-20
-8
-2
-10
V
V
A

W

°C
ID
 Drain Current Continuous Pulsed (Note 1)
PD
 Power Dissipation for Single Operation (Note 1)
0.8
-55 to 150
TJ,TSTG Operating and Storage Junction Temperature Range
THERMAL CHARACTERISTICS
RJA
RJC		 Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case		 (Note 1)
(Note 1)

156
40

 °C/W
°C/W



Description

These dual N- and P -Channel enhancement mode power field effect transistors NDH8320C are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. NDH8320C is particularly suited for low voltage applications such as notebook computer power management and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.
