Purchase NJM2277, In-stock NJM2277 From SeekIC.
MFG:JRC Package Cooled:SS0P
Part Number: NJM2277
MFG: JRC
Package Cooled: SS0P
Description: The NJM2277 is a Video switch for Set Top Box, and TV.The NJM2277 includes 2 CVBS input, 2-RGB...
- Table of contents:
NJM2277
-
Suppliers
DataSheet
General Description
NJM2277 General Description
The NJM2277 is a Video switch for Set Top Box, and TV.
The NJM2277 includes 2 CVBS input, 2-RGB input switches.
Also it allow the inputs to be routed in 3 CVBS output, 1-RGB output.
The NJM2277 includes 5th-order Low pass Filter suppress the noise interference to video signal.
The NJM2277 enable to control the Output Impedance for RGB outputs.
NJM2277 Maximum Ratings
Supply Voltage V+ ......................................................15 V
Power Dissipation PD .....(SDIP28) 700 (SDMP30) 700 mW
Operating Temperature Range Topr ............-40 to +85 °C
Storage Temperature Range Tstg ..............-40 to +125 °C
Power Dissipation PD .....(SDIP28) 700 (SDMP30) 700 mW
Operating Temperature Range Topr ............-40 to +85 °C
Storage Temperature Range Tstg ..............-40 to +125 °C
NJM2277 Features
· Operating Voltage ±5V
· 2- RGB Switches.
· 75Ω Cable Driver on all channels.
· 41dB Stop Band Rejection (@27MHz)
· Bipolar Technology
· Package Outline SDIP28, SDMP30
· 2-Input,3-output CVBS Switches.
· Quad 5th order Butter worth Low Pass Filter.
· High Impedance output for RGB signal.
· 2- RGB Switches.
· 75Ω Cable Driver on all channels.
· 41dB Stop Band Rejection (@27MHz)
· Bipolar Technology
· Package Outline SDIP28, SDMP30
· 2-Input,3-output CVBS Switches.
· Quad 5th order Butter worth Low Pass Filter.
· High Impedance output for RGB signal.

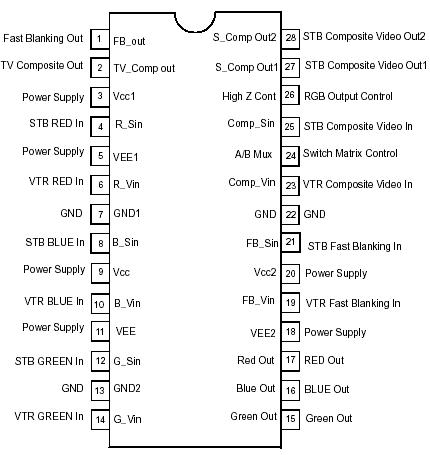

NJM2277 Connection Diagram
NJM2277
