Product Details

Description



Features:

· NTSC/PAL matching (Resemblance PAL de-modulation system)
· Internal Y/C separate circuit
· Input mode: Composite video signal, Y/C separate signal
· Internal one systems input for analog RGB
· Internal synchronous separate circuit (Liquid crystal panel PLL use)
· Internal black level insertion circuit (Use for aspect ratio change)
· Internal Gamma 2-point correction circuit
· Internal Color TFT Common Pole Driver
· Bipolar technology
· Package Outline QFP64-N1


Pinout

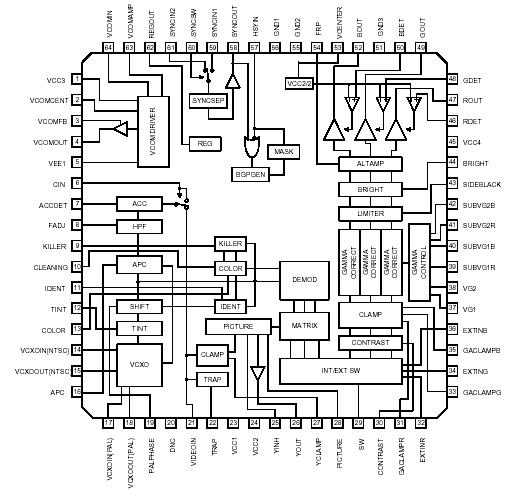

Connection Diagram


Specifications

PARAMETERS SYMBOL RATINGS UNIT
Supply Voltage 1 VCC1 - GND 8.0 V
Supply Voltage 2 VCC2 - GND 8.0 V
Supply Voltage 3 VCC3 - VEE1 15.0 V
Supply Voltage 4 VCC4 - GND 8.0 V
Supply Voltage 5 VEE1 - GND -7.0 V
Power Dissipation PD 700 mW
Each Adjustment Terminal VIN VCC1 V
Sync Out Voltage VSD VEE1+Vcc3 V
Video Input Voltage VVDIN 3.0 VP-P
External Input Voltage EXTIN VCC1 V
Analog RGB Input Signal RGBIN VCC1 V
FRP Input Signal Voltage FRPIN VCC1 V
SYNC Input Voltage SYNCIN 3.0 VP-P
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstr -40 to +125 °C



Description

The NJM2529 is a color TFT signal processor.

NJM2529 contains all function, like as Y/C separator circuit, color signal de-modulator, synchronous separate circuit, RGB interface, side black control circuit, and common pole driver, required by color TFT signal processing.

The NJM2529 keeps selecting NTSC/PAL with external VCXO circuit TRAP circuit for each broadcasting.
