General Description
NJU3553M General Description
The NJU3553 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.
It is completely compatible with the NJU3503 in function and the pin configuration. Therefore, the NJU3553 is suitable for the final evaluation before NJU3503 mask generation, the small quantity production and short leadtime.
NJU3553M Maximum Ratings
| PARAMETER | SYMBOL | RATINGS | UNIT |
| Supply Voltage | VDD | -0.3 ~ +7.0 | V |
| Input Voltage | VIN | -0.3 ~ VDD + 0.3 | V |
| Output Voltage | VOUT | -0.3 ~ VDD + 0.3 | V |
| Analog Supply Voltage | AVDD | -0.3 ~ VDD + 0.3 | V |
| Analog Reference Voltage | VREF | -0.3 ~ AVDD + 0.3 | V |
| Analog Input Voltage | AIN0 ~ AIN5 | -0.3 ~ AVDD + 0.3 | V |
| Operating Temperature | Topr | -20 ~ +75 | °C |
| Storage Temperature | Tstg | -55 ~ +125 | °C |
The difference of electrical characteristics between NJU3553 (OTP version) and NJU3503 (MASK version)
NJU3553M Features
`Internal One Time Programmable ROM 2,048 X 8bits
`Internal Data RAM 128 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline SDIP28 / SDMP30 (Compatible with NJU3503)
`ROM programmer "SUPERPRO/L" by XELTEK co,.
`Internal Data RAM 128 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline SDIP28 / SDMP30 (Compatible with NJU3503)
`ROM programmer "SUPERPRO/L" by XELTEK co,.

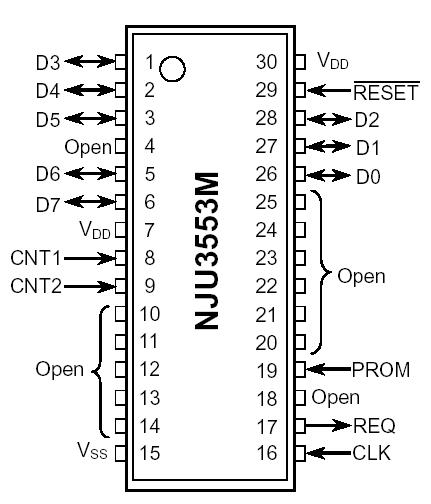

NJU3553M Connection Diagram
