Product Details

Description



Features:

• Low Operating Current  35A typ.
• Output Current 150mA
• High Precision Output Voltage Vo±2%
• Low Dropout Voltage 0.2V typ. @Io=100mA, 2.8VVo3.3V
• Standby Function
• Short Current Protection Circuit
• C-MOS Technology
• Package Outline MTP5

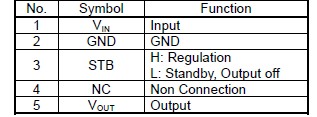

Pinout

Connection Diagram Connection Diagram


Specifications

PARAMETER Symbol Ratings Unit
INPUTVoltage V+ 9

V

Control Voltage VID GND-0.3 ∼ VIN+0.3 V
OutputVoltage VIC GND-0.3 ∼ VIN+0.3 V
Output Current
IPC
200
mA
Power Dissipation PD 250 mW
Operating Temperature
TOPR -40 ∼ +85 °C
Storage Temperature TSTG -50 ∼ +150 °C



Description

The NJU7250 series is low dropout voltage and high precision positive voltage regulator with ON/OFF control.


NJU7250 is suitable for the battery items because of low operating current and 150mA output current.

Furthermore, this series of NJU7250 is packaged with MTP5
