Features:

• Operating Voltage VDD=2.4 ∼ 5.5V
• FG Output
• Internal Lock Detect / Auto Recovery Circuit
• Internal Thermal Shutdown Circuit
• Low Operating Current IDD=3mA (Typ.)
• Low Saturation Output Voltage Vsat=±0.35V @Io=±350mA
• C-MOS Technology
• Package Outline TVSP10

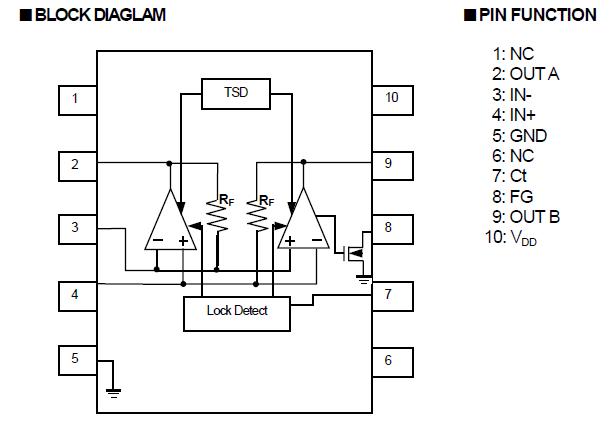

Pinout

  Connection Diagram


Specifications

PARAMETER
RATINGS
SYMBOL (unit)
NOTE
Supply Voltage
+7.0
VDD (V)
Input Voltage
-0.3 ∼ VDD+0.3
VID(V)
Output Current (Peak)
600
IO PEAK (mA)
Operating Temperature Range
-40 ∼ +85
Topr (°C)
Storage Temperature Range
-50 ∼ +150
Tstg (°C)
Power Dissipation
400
PD (mW)
Device itself



Description

The NJU7329A is a single-phase DC brushless motor driver IC for small fan-motor and high power applications. It features MOS-FET driver circuit for better saturation characteristics. Slew late of amplifiers and feedback resistors are optimized to achieve low-noise motor operation. The NJU7329A also includes. Frequency generator (FG) output for various control needs.
