Part Number: NL17SZU04
Description: The NL17SZU04 is a single unbuffered inverter in two tiny footprint package. The device performs much as LCX multi-gate...
- Table of contents:
NL17SZU04
-
Suppliers
DataSheet
General Description
NL17SZU04 General Description
The NL17SZU04 is a single unbuffered inverter in two tiny footprint package. The device performs much as LCX multi-gate products in speed and drive.
NL17SZU04 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage | −0.5 to + 7.0 | V |
| VI | DC Input Voltage | −0.5 to + 7.0 | V |
| VO | DC Output Voltage Output in Higher or Low State (Note 1) | −0.5 to + 7.0 | V |
| IIK | DC Input Diode Current VI < GND | −50 | mA |
| IOK | DC Output Diode Current VO = GND VO = VCC |
−50 |
mA |
| IOU | DC Output Sink Current | ±50 | mA |
| ICC | DC Supply Current per Supply Pin | ±100 | mA |
| IGND | DC Ground Current per Ground Pin | ±100 | mA |
| TSTG | Storage Temperature Range | −65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
| TJ | Junction Temperature Under Bias | +150 | °C/W |
| JA | Thermal Resistance SOT- 353 SOT- 553 |
350 496 |
°C |
| PD | Power Dissipation in Still Air SOT-353 SOT-553 |
186 135 |
|
| MSL | Moisture Sensitivity | Level 1 | |
| FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V−0 @ 0.125 in | |
| VESD | ESD Classification Human Body Model (Note 3) Machine Model (Note 4) Charged Device Model (Note 5) |
Class IC Class A N/A |
V |
Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum-rated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm-by-1 inch, 2-ounce copper trace with no air flow.
2. Tested to EIA/JESD22-A114-A, rated to EIA/JESD22-A114-B.
3. Tested to EIA/JESD22-A115-A, rated to EIA/JESD22-A115-A.
4. Tested to JESD22-C101-A.
NL17SZU04 Features
• Tiny SOT- 353 and SOT- 553 Packages
• Source/Sink ±16 mA at 4.5 V VCC
• Over-Voltage Tolerant Inputs and Outputs
• Pin For Pin with NC7SZU04P5X, TC7SZU04FU and TC7SZU04AFE
• Chip Complexity: FETs = 20
• Designed for 1.65 V to 5.5 V VCC Operation
• Source/Sink ±16 mA at 4.5 V VCC
• Over-Voltage Tolerant Inputs and Outputs
• Pin For Pin with NC7SZU04P5X, TC7SZU04FU and TC7SZU04AFE
• Chip Complexity: FETs = 20
• Designed for 1.65 V to 5.5 V VCC Operation

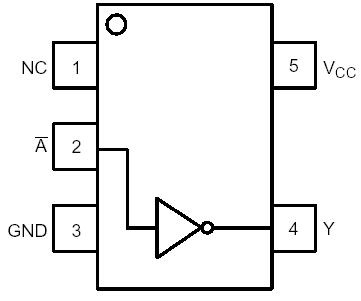

NL17SZU04 Connection Diagram
NL17SZU04
PDF/DataSheet Download
- Datasheet: NL17SZU04
- File Size: 81345 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
- ·NL10276AC28-01L
- NEC [NEC]
- 36 cm 14.1 inches, 1024 x 768 pixels, Full-color, Multi-scan function, Built-in CRT interface board
- 272012 KB
- ·NL10276AC28-02L
- NEC [NEC]
- 36 cm 14.1 inches, 1024 x 768 pixels, Full-color, Ultra-wide viewing angle, Multi-scan function, CRT interface board
- 232534 KB
- ·NL10276AC30-01
- NEC [NEC]
- 38 cm 15 inches, 1024 x 768 pixels, Full-color, Multi-scan Function, Built-in backlight with inverter Ultra wide viewing angle
- 239942 KB
- ·NL10276AC30-01A
- NEC [NEC]
- 38 cm 15 inches, 1024 x 768 pixels, Full-color, Multi-scan Function, Built-in backlight with inverter Ultra wide viewing angle
- 239942 KB
- ·NL10276AC30-03
- NEC [NEC]
- 38 cm 15.0 inches, 1024 x 768 pixels, FULL-COLOR, MULTI-SCAN FUNCTION Wide viewing angle
- 288090 KB
- ·NL10276AC30-04R
- NEC [NEC]
- 38 cm 15.0 inches, 1024 x 768 pixels, 262,144 colors, LVDS interface, Wide viewing angle, High luminance
- 211300 KB
- ·NL10276BC28-05D
- NEC [NEC]
- 36 cm 14.1 inches, 1024 x 768 pixels, 262,144 colors, LVDS Interface, High luminance
- 207556 KB
- ·NL128102AC23-02A
- NEC [NEC]
- 39 cm 15.4 inches, 1280 x 1024 pixels, Full-color, Multi-scan Function Incorporated backlight with inverter
- 286639 KB
NL17SZU04 Relative Products
NL17SZ86DFT2
IC GATE OR EXCL SGL 2INP SOT353
NL17SZ86
The NL17SZ86 is a high performance single 2−input Exclusive−OR Gate operating from a 2.3 V to 5.5 V supply.
NL17SZ74USG
IC FLIP-FLOP D-TYPE SGL LOG US88

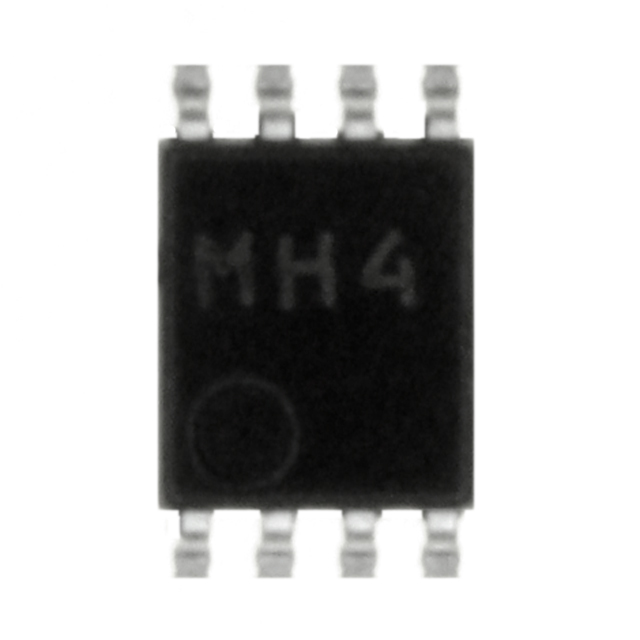

NL17SZ74US
