NL27WZ04

Features: • Extremely High Speed: tPD 2.0 ns (typical) at VCC = 5 V• Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs and Outputs• LVTTL Compatible Interface Capability With 5 V TTL Logic with VCC = 3 V• LVCMOS Compatible• 24 mA Balanced...

product image

NL27WZ04 Picture
See larger image
SeekIC No. : 004434702 Detail

NL27WZ04: Features: • Extremely High Speed: tPD 2.0 ns (typical) at VCC = 5 V• Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs and Outputs• LVTTL Compatible I...

NL27WZ04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NL27WZ04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extremely High Speed: tPD 2.0 ns (typical) at VCC = 5 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs and Outputs
• LVTTL Compatible Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7W04
• Chip Complexity: FET = 72; Equivalent Gate = 18


Pinout

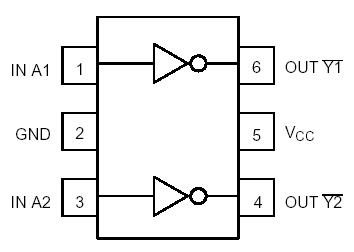

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage -0.5 VI +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) -0.5 VO +7.0 V
IIK DC Input Diode Current VI < GND -50 mA
IOK DC Output Diode Current VO = GND
VO = VCC		 -50

 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature Range -65 to +150 °C
PD Power Dissipation in Still Air at 85°C 200 mW
JA Thermal Resistance SOT- 353 (Note 1)
SOT- 553		 333 °C/W
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
VESD ESD Classification Human Body Model (Note 4)
Machine Model (Note 5)
Charge Device Model (Note 6)		 >2000
>200
N/A

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximumrated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. IO absolute maximum rating must be observed.
2. Measured with minimum pad spacing on an FR4 board, using 10 mmby1 inch, 2ounce copper trace with no air flow.
3. Tested to EIA/JESD22A114A
4. Tested to EIA/JESD22A115A
5. Tested to JESD22C101A




Description

The NL27WZ04 is a high performance dual inverter operating from a 1.65 V to 5.5 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance.
