Part Number: NL27WZ32
Description: The NL27WZ32 is a high performance dual 2−input OR Gate operating from a 1.65 V to 5.5 V supply.
- Table of contents:
NL27WZ32
-
Suppliers
DataSheet
General Description
NL27WZ32 General Description
The NL27WZ32 is a high performance dual 2−input OR Gate operating from a 1.65 V to 5.5 V supply.
NL27WZ32 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage | -0.5 to +7.0 | V |
| VI | DC Input Voltage | -0.5 to +7.0 | V |
| VO | DC Output Voltage Output in Higher or Low State (Note 1) | -0.5 to +7.0 | V |
| IIK | DC Input Diode Current VI < GND | −50 | mA |
| IOK | DC Output Diode Current VO = GND VO = VCC |
−50 |
mA |
| IOU | DC Output Sink Current | ±50 | mA |
| ICC | DC Supply Current per Supply Pin | ±50 | mA |
| IGND | DC Ground Current per Ground Pin | ±50 | mA |
| TSTG | Storage Temperature Range | −65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
| TJ | Junction Temperature Under Bias | +150 | °C |
| JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
250 | °C/W |
| PD | Power Dissipation in Still Air at 85°C | 250 | mW |
| MSL | Moisture Sensitivity | Level 1 | |
| FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V−0 @ 0.125 in | |
| ESD | ESD Classification Human Body Model (Note 4) Machine Model (Note 5) Charge Device Model (Note 6) |
>2000 >200 N/A |
V |
| ILatch−Up | Latch−Up Performance Above VCC and Below GND at 85°C (Note 5) | ±500 | mA |
Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If stress limits are exceeded device functional operation is not implied, damage may occur and reliability may be affected. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2−ounce copper trace with no air flow.
2. Tested to EIA/JESD22−A114−A.
3. Tested to EIA/JESD22−A115−A.
4. Tested to JESD22−C101−A.
5. Tested to EIA/JESD78.
NL27WZ32 Features
• Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7WZ32
• Chip Complexity: FET = 120
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7WZ32
• Chip Complexity: FET = 120

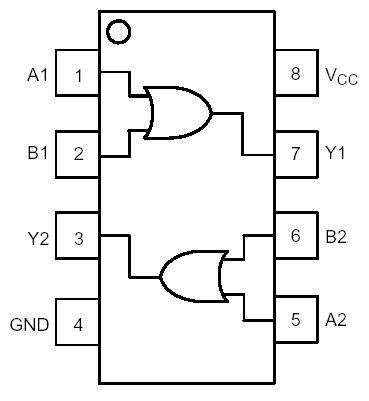

NL27WZ32 Connection Diagram
NL27WZ32
PDF/DataSheet Download
- Datasheet: NL27WZ32
- File Size: 52951 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
- ·NL2016
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-1R0J
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-1R0K
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-2R2J
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-2R2K
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-330J
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
- ·NL201614T-330K
- TDK [TDK Electronics]
- For General Applications
- 63272 KB
NL27WZ32 Relative Products

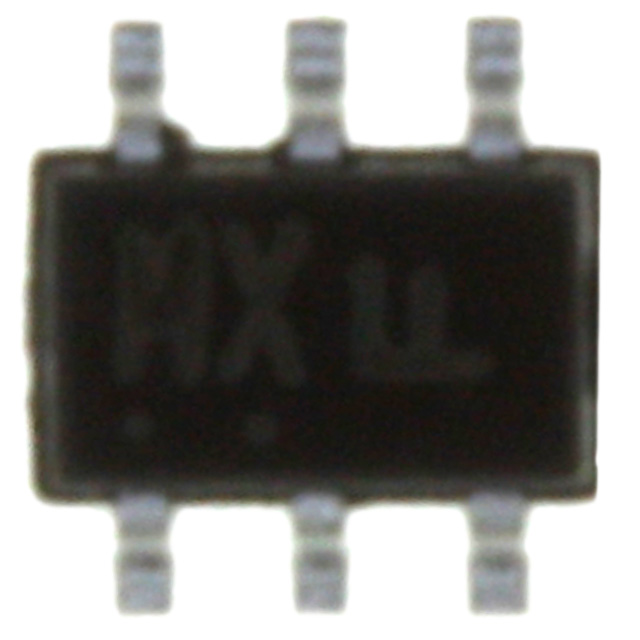

NL27WZ17DFT2G
