Part Number: NLAS3799
Description: The NLAS3799 is an ultra-low RON DPDT and a 0.5 RONDPDT an...
- Table of contents:
NLAS3799
-
Suppliers
DataSheet
General Description
NLAS3799 General Description
The NLAS3799 is an ultra-low RON DPDT and a 0.5 RON DPDT analog switch. This device is designed for low operating voltage, high current switching of speaker output and earpiece for cellphone applications. It can switch a balanced stereo output. The NLAS3799 can handle a balanced microphone/speaker/ring?tone generator in a monophone mode. The device contains a break?before?make (BBM) feature.
NLAS3799 Maximum Ratings
| Symbol | Rating | Value | Unit |
| VCC | Positive DC Supply Voltage | −0.5 to +6.0 | V |
| VIS | Analog Input Voltage (VNO, VNC, or VCOM) | −0.5 VIS VCC +0.5 | V |
| VIN | Digital Select Input Voltage | −0.5 VIN +VCC | V |
| Ianl1 | Continuous DC Current from COM to NC/NO | ±300 | mA |
| Ianl−pk1 | Peak Current from COM to NC/NO, 10 Duty Cycles (Note 1) | ±500 | mA |
| Iclmp | Continuous DC Current into COM/NC/NO with respect to VCC or GND | ±100 | mA |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1.Defined as 10% ON, 90% OFF Duty Cycle.
NLAS3799 Features
·Single Supply Operation
·1.65 to 3.6 V VCC
·Maximum Breakdown Voltage: 4.6 V
·Low Static Power
·NLAS3799 Interfaces with 2.8 V Chipset
·NLAS3799L Interfaces with 1.8 V Chipset
·These are Pb?Free Devices*
·1.65 to 3.6 V VCC
·Maximum Breakdown Voltage: 4.6 V
·Low Static Power
·NLAS3799 Interfaces with 2.8 V Chipset
·NLAS3799L Interfaces with 1.8 V Chipset
·These are Pb?Free Devices*
NLAS3799 Typical Application
·Cell Phone Speaker/Microphone Switching
·Ringtone-Chip/Amplifier Switching
·Four Unbalanced (Single-Ended) Switches
·Stereo Balanced (Push-Pull) Switching
·Ringtone-Chip/Amplifier Switching
·Four Unbalanced (Single-Ended) Switches
·Stereo Balanced (Push-Pull) Switching

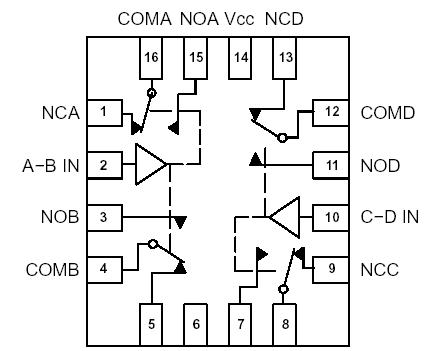

NLAS3799 Connection Diagram
NLAS3799
PDF/DataSheet Download
- Datasheet: NLAS3799
- File Size: 103475 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
