NLW15-12, US $ 1.71-1.71, NLW15-12 DataSheet download, circuit diagram from SeekIC.com

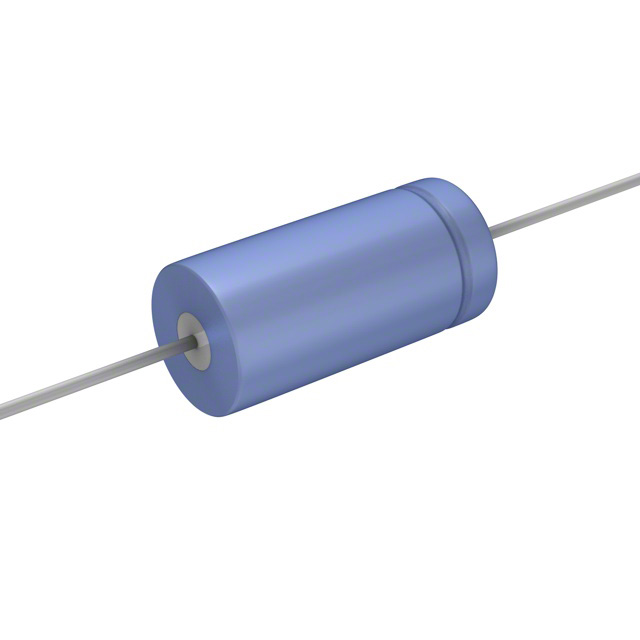

See larger image

SeekIC No. : 002909632 Detail

NLW15-12: CAP ALUM 15UF 12V AXIAL

NLW15-12 Data Sheet

US $ 1.71~1.71 / Piece | Get Latest Price

Part Number:: NLW15-12
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~700

Unit Price
$1.71

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NLW100-12 evaluate
US $1.99 - 1.99 / Piece

CAP ALUM 100UF 12V AXIAL
NLW100-16 evaluate
US $4.51 - 6.07 / Piece

Aluminum Electrolytic Capacitors - Leaded 100UF 16V
NLW100-25 evaluate
US $5.34 - 9.97 / Piece

Aluminum Electrolytic Capacitors - Leaded 100uF 25V AX HI-TEMP

Product Details

Quick Details

Series:	NLW	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	15µF	Dimensions :	196 mm L x 12.5 mm W
Voltage Rating:	12V	Tolerance:	-10%, +75%
Lifetime @ Temp.:	1000 Hrs @ 105°C	Operating Temperature:	-40°C ~ 105°C
Features:	General Purpose	Ripple Current:	56mA
ESR (Equivalent Series Resistance):	17.7 Ohm	Impedance:	-
Mounting Type:	Through Hole	Package / Case:	Axial, Can
Size / Dimension:	0.280" Dia x 0.570" L (7.11mm x 14.49mm)	Height - Seated (Max):	-
Lead Spacing:	-	Surface Mount Land Size:	-

Description

Features: General Purpose
Impedance: -
Mounting Type: Through Hole
Surface Mount Land Size: -
Lead Spacing: -
Lifetime @ Temp.: 1000 Hrs @ 105°C
Operating Temperature: -40°C ~ 105°C
Height - Seated (Max): -
Packaging: Bulk
Capacitance: 15µF
Ripple Current: 56mA
Package / Case: Axial, Can
Manufacturer: Cornell Dubilier Electronics (CDE)
Tolerance: -10%, +75%
Size / Dimension: 0.280" Dia x 0.570" L (7.11mm x 14.49mm)
Series: NLW
Voltage Rating: 12V
ESR (Equivalent Series Resistance): 17.7 Ohm

Parameters:

Technical/Catalog Information	NLW15-12
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	15F
ESR (Equivalent Series Resistance)	17.70 Ohm
Features	Computer Grade
Lifetime @ Temp.	1000 Hrs @ 105°C
Maximum Temperature	-40°C ~ 105°C
Size / Dimension	0.280" Dia x 0.570" H (7.11mm x 14.49mm)
Lead Spacing	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial
Packaging	Bulk
Tolerance	-10%, +75%
Voltage Rating	12V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NLW15 12 NLW1512
