Part Number: NRF0433
Description: nRF0433 is a true single chip UHF transceiver designed to operate in the 433MHz ISM (Industrial, Scien...
- Table of contents:
NRF0433
-
Suppliers
DataSheet
General Description
NRF0433 General Description
nRF0433 is a true single chip UHF transceiver designed to operate in the 433MHz ISM (Industrial, Scientific and Medical) frequency band. It features Frequency Shift Keying (FSK) modulation and demodulation capability. nRF0433 operates at bit rates up to 9600 bit/s. Transmit power can be adjusted to a maximum of 10dBm. It features a differential antenna interface and an internal transmit/receive switch. nRF0433 operates from a single +5V DC supply.
As a primary application, nRF0433 is intended for design of UHF transceivers in compliance with the European Telecommunication Standard Institute (ETSI) specification EN 300 220-1 V1.2.1.
NRF0433 Maximum Ratings
Supply voltages
VDD.......................................... - 0.3V to +6V
VSS .......................................................... 0V
Input voltage
VI ................................ - 0.3V to VDD + 0.3V
Output voltage
VO.................................- 0.3V to VDD + 0.3V
Power dissipation
PD (TA=25°C).....................................90mW
Temperatures
Operating Temperature.. -25°C to +85°C
Storage Temperature... -40°C to +125°C
Note: Stress exceeding one or more of the limiting values may cause permanent damage to the device.
VDD.......................................... - 0.3V to +6V
VSS .......................................................... 0V
Input voltage
VI ................................ - 0.3V to VDD + 0.3V
Output voltage
VO.................................- 0.3V to VDD + 0.3V
Power dissipation
PD (TA=25°C).....................................90mW
Temperatures
Operating Temperature.. -25°C to +85°C
Storage Temperature... -40°C to +125°C
Note: Stress exceeding one or more of the limiting values may cause permanent damage to the device.
NRF0433 Features
· True single chip FSK transceiver
· On chip UHF synthesiser, 4MHz crystal reference
· 433MHz ISM band operation
· Few external components required
· Up to 10mW transmit power
· No setup/configuration
· On chip UHF synthesiser, 4MHz crystal reference
· 433MHz ISM band operation
· Few external components required
· Up to 10mW transmit power
· No setup/configuration
NRF0433 Typical Application
· Alarm and Security Systems
· Home Automation
· Remote Control
· Surveillance
· Automotive
· Telemetry
· Toys
· Wireless Communication
· Home Automation
· Remote Control
· Surveillance
· Automotive
· Telemetry
· Toys
· Wireless Communication

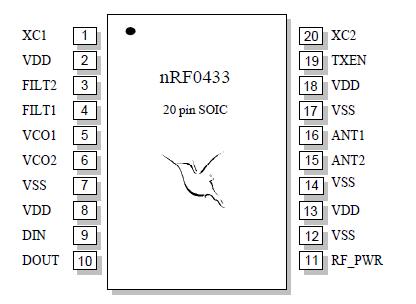

NRF0433 Connection Diagram
NRF0433
