Part Number: NS32FX200-25
Description: The NS32FX200, NS32FV100 and NS32FX100 are highly integrated system chips designed for a FAX system ba...
- Table of contents:
NS32FX200-25
-
Suppliers
DataSheet
General Description
NS32FX200-25 General Description
The NS32FX200, NS32FV100 and NS32FX100 are highly integrated system chips designed for a FAX system based on National Semiconductor's embedded processorsÐ NS32FX161, NS32FV16 or NS32FX164. The NS32FX100 is the common core for all three system chips.
The NS32FV100 and NS32FX200 offer additional functions. Throughout this document, references to the NS32FX100 also apply to both the NS32FV100 and the NS32FX200. Specific NS32FV100 or NS32FX200 features are explicitly indicated. The NS32FX200, NS32FV100 and NS32FX100 feature an interface to devices like stepper motors, printers and scanners, a Sigma-Delta CODEC, an elapsed-time counter, a DMA controller, an interrupt controller, and a UART.
The NS32FX200 is optimized for high-end FAX applications, such as plain-paper FAX and multifunctional peripherals. The NS32FX100, is optimized for low-cost FAX applications. The NS32FV100 is optimized for thermal paper FAX machines with Digital Answering Machine support.
NS32FX200-25 Maximum Ratings
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Temperature under Bias.... 0 to +70
Storage Temperature.... -65 to +150
All Input or Output Voltages
with Respect to GND..... -0.5V to +6.5V
Note: Absolute maximum ratings indicate limits beyond which permanent damage may occur. Continuous operation a these limits is not intended; operation should be limited to those conditions specified under Electrical Characteristics .
NS32FX200-25 Features
· Direct interface to the NS32FX161, NS32FV16 and NS32FX164 embedded processors
· Supports a variet· of Contact Image Sensor (CIS) and Charge Coupled Device (CCD) scanners
· Direct interface to a variet· of Thermal Print Head (TPH) printers. Bitmap shifter and DMA channels facilitate the connection of other types of printers
· Supports two stepper motors
· Direct interface to ROM and SRAM. The NS32FX200 and NS32FV100, in addition, interface to DRAM devices
· Programmable wait state generator
· Demultiplexed address and data buses
· Multiplexed DRAM address bus (NS32FX200 and NS32FV100)
· Supports 3V freeze mode by maintaining only elapsed time counter
· Control of power consumption by disabling inactive modules and reducing the clock frequency
· Operating frequency
Normal mode: 19.6608 MHzÐ24.576 MHz in steps of 1.2288 MHz. (NS32FX200)
Normal mode: 19.6608 MHzÐ24.576 MHz in steps of 1.2288 MHz. (NS32FV100)
Normal mode: 14.7456 MHzÐ19.6608 MHz in steps of 1.2288 MHz. (NS32FX100)
Power Save mode: Normal mode frequency dividedby sixteen
· On-Chip full duplex Sigma-Delta CODEC with:
Total harmonic distortion better than b70 dB
Programmable h·brid balance filter
Programmable reception and transmission filters
Programmable gain control
· On-Chip Interrupt Control Unit with:
16 interrupt sources
Programmable triggering mode
· On-Chip counters, WATCHDOGTM, UART, MICROWIRETM, System Clock Generator, and I/O ports
· On-Chip DMA controller (NS32FX200Ðfour channels, NS32FX100, NS32FV100Ðthree channels)
· Up to 37 on-chip general purpose I/O pins, expandable externally
· Flexible allocation of I/O and modules' pins
· 132-pin JEDEC PQFP package
· Supports a variet· of Contact Image Sensor (CIS) and Charge Coupled Device (CCD) scanners
· Direct interface to a variet· of Thermal Print Head (TPH) printers. Bitmap shifter and DMA channels facilitate the connection of other types of printers
· Supports two stepper motors
· Direct interface to ROM and SRAM. The NS32FX200 and NS32FV100, in addition, interface to DRAM devices
· Programmable wait state generator
· Demultiplexed address and data buses
· Multiplexed DRAM address bus (NS32FX200 and NS32FV100)
· Supports 3V freeze mode by maintaining only elapsed time counter
· Control of power consumption by disabling inactive modules and reducing the clock frequency
· Operating frequency
Normal mode: 19.6608 MHzÐ24.576 MHz in steps of 1.2288 MHz. (NS32FX200)
Normal mode: 19.6608 MHzÐ24.576 MHz in steps of 1.2288 MHz. (NS32FV100)
Normal mode: 14.7456 MHzÐ19.6608 MHz in steps of 1.2288 MHz. (NS32FX100)
Power Save mode: Normal mode frequency dividedby sixteen
· On-Chip full duplex Sigma-Delta CODEC with:
Total harmonic distortion better than b70 dB
Programmable h·brid balance filter
Programmable reception and transmission filters
Programmable gain control
· On-Chip Interrupt Control Unit with:
16 interrupt sources
Programmable triggering mode
· On-Chip counters, WATCHDOGTM, UART, MICROWIRETM, System Clock Generator, and I/O ports
· On-Chip DMA controller (NS32FX200Ðfour channels, NS32FX100, NS32FV100Ðthree channels)
· Up to 37 on-chip general purpose I/O pins, expandable externally
· Flexible allocation of I/O and modules' pins
· 132-pin JEDEC PQFP package

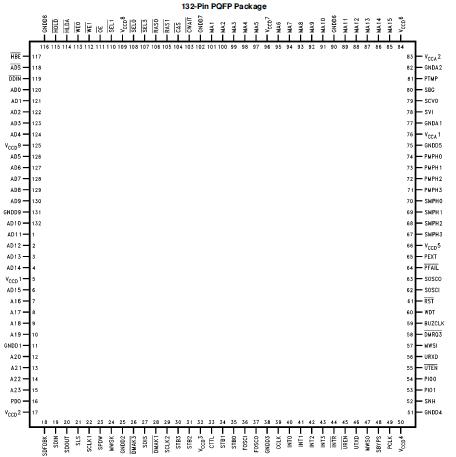

NS32FX200-25 Connection Diagram
