Product Details

Description



Features:

· Provides 80-channel LCD driver
· Internal serial to parallel conversion circuits:
   40-bit bi-direction shift register × 2
   80-bit latch × 1
   80-bit 4-level driver × 1
· Logic circuit supply voltage range: 4.5V - 5.5V
· LCD driving voltage range (VDD - VEE): 3.5V to 11V
· Applicable LCD duty cycle: 1/2 to 1/16
· Interfaces with a NT3881B/C/D LCD controller
· LCD bias voltage can be supplied externally
· Available in 100-pin QFP and in CHIP FORM


Pinout

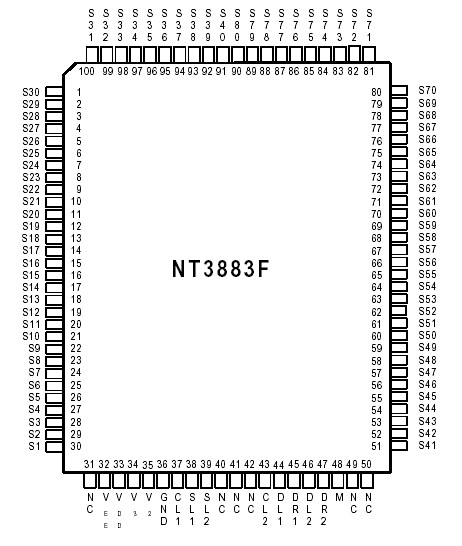

Connection Diagram


Specifications

Power Supply Voltage (VDD-GND) . . . . . . -0.3V to 7.0V
Power Supply Voltage (VDD-VEE) . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . VDD - 13.5V to VDD + 0.3V
Input Voltage . . . . . . . . . . . . . . . .-0.3V to VDD + 0.3V
Operating Temperature . . . . . . . . . . . . -20 to + 75
Storage Temperature . . . . . . . . . . . . .-55 to + 125


Description

The NT3883 is a dot matrix LCD 80-channel driver fabricated by low power CMOS technology. This IC consists of two 40-bit bi-directional shift registers, 80-bit latch and 80-bit 4-level LCD driver. The NT3883 converts serial data that are received from the LCD controller, such as NT3881B/C/D, to parallel data and outputs LCD driving waveforms to drive LCD. Expansion of character-type liquid crystal display can be easily obtained according to the number and structure of characters.
