Part Number: NT3881D
Description: The NT3881D is a dot matrix LCD controller and driver LSI that can operate with either a 4-bit or an 8...
- Table of contents:
NT3881D
-
Suppliers
DataSheet
General Description
NT3881D General Description
The NT3881D is a dot matrix LCD controller and driver LSI that can operate with either a 4-bit or an 8-bit microprocessor (MPU). NT3881D receives control character codes from the MPU, stores them in an internal RAM (up to 80 characters), transforms each character code into a 5 X 7, 5 X 8, or 5 X 10 dot matrix character pattern, and then displays the codes on the LCD panel. The built-in Character Generator ROM consists of 256 different character patterns. The NT3881D also contains Character Generator RAM where the user can store 8 different character patterns at run time. These memory features make character display flexible. NT3881D also provides many display instructions to achieve versatile LCD display functions. The NT3881D is fabricated on a single LSI chip using the CMOS process, resulting in very low power requirements. With several NT3882 driver ICs connected to the NT3881D, up to 80 characters can be displayed.
NT3881D Maximum Ratings
Power Supply Voltage (VDD) . . . . . . . . . . -0.3V to +0.7V
Power Supply Voltage(V1toV5).VDD -13.5V to VDD+0.3V
Input Voltage (VI) . . . . . . . . . . . . . . -0.3V to VDD +0.3V
Operating Temperature (TOPR) . . . . . . -20°C to +75°C
Storage Temperature (TSTG) . . . . . . . -55°C to +125°C
Power Supply Voltage(V1toV5).VDD -13.5V to VDD+0.3V
Input Voltage (VI) . . . . . . . . . . . . . . -0.3V to VDD +0.3V
Operating Temperature (TOPR) . . . . . . -20°C to +75°C
Storage Temperature (TSTG) . . . . . . . -55°C to +125°C
NT3881D Features
· Internal LCD drivers 16 common signal drivers 40 segment signal drivers (can be externally extended to 400 segments using NT3882)
· Maximum display dimensions
40 characters * 2 lines or
80 characters * 1 line
· Interfaces with 4-bit or 8-bit MPU
· Versatile display functions provided on chip: Display Clear, Cursor Home, Display ON/OFF, Cursor ON/OFF, Character Blinking, Cursor Shift, and Display Shift
· Three duty factors, selected by PROGRAM: 1/8, 11/11, and 1/16
· Displays Data RAM (DD RAM): 80 X 8 bits (displays up to 80 characters)
· Character Generator RAM (CG RAM):
64 X 8 bits for general data,
8 5 X 8 programmable dot patterns, or
4 5 X 10 programmable dot patterns
· Low voltage reset
· NOVATEK Identification code
· Bonding option for A-type and B-type waveform
· Character Generator ROM (CG ROM):
3 kinds of CG ROM sizes:
192 characters:
160 5 X 8 dot patterns
32 5 X 10 dot patterns
240 characters:
192 5 X 8 dot patterns
48 5 X 10 dot patterns
256 characters:
192 5 X 8 dot patterns
64 5 X 10 dot patterns
Custom CG ROM is also available
· Built-in power-on reset function
· Logic power supply: single +5V supply
· LCD driver power supply: V1 - V5 (VDD+0.3 - VDD-13.5)
· Three oscillator operations (Freq. = 250KHz - 270KHz):
• Internal oscillation
• Ceramic resonator
• External clock
· CMOS Process
· Available in 80-pin QFP or in CHIP FORM
· Maximum display dimensions
40 characters * 2 lines or
80 characters * 1 line
· Interfaces with 4-bit or 8-bit MPU
· Versatile display functions provided on chip: Display Clear, Cursor Home, Display ON/OFF, Cursor ON/OFF, Character Blinking, Cursor Shift, and Display Shift
· Three duty factors, selected by PROGRAM: 1/8, 11/11, and 1/16
· Displays Data RAM (DD RAM): 80 X 8 bits (displays up to 80 characters)
· Character Generator RAM (CG RAM):
64 X 8 bits for general data,
8 5 X 8 programmable dot patterns, or
4 5 X 10 programmable dot patterns
· Low voltage reset
· NOVATEK Identification code
· Bonding option for A-type and B-type waveform
· Character Generator ROM (CG ROM):
3 kinds of CG ROM sizes:
192 characters:
160 5 X 8 dot patterns
32 5 X 10 dot patterns
240 characters:
192 5 X 8 dot patterns
48 5 X 10 dot patterns
256 characters:
192 5 X 8 dot patterns
64 5 X 10 dot patterns
Custom CG ROM is also available
· Built-in power-on reset function
· Logic power supply: single +5V supply
· LCD driver power supply: V1 - V5 (VDD+0.3 - VDD-13.5)
· Three oscillator operations (Freq. = 250KHz - 270KHz):
• Internal oscillation
• Ceramic resonator
• External clock
· CMOS Process
· Available in 80-pin QFP or in CHIP FORM

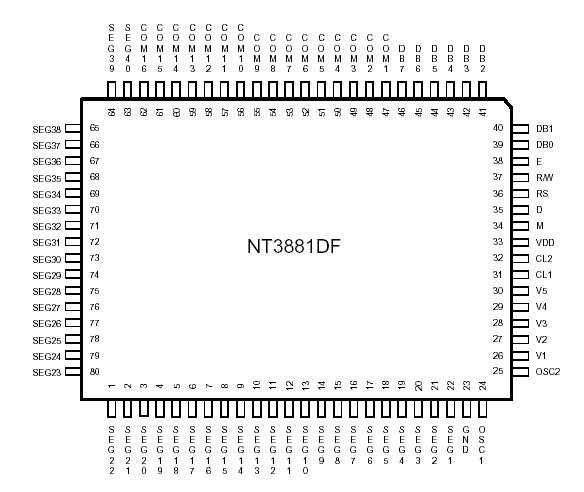

NT3881D Connection Diagram
NT3881D
PDF/DataSheet Download
- Datasheet: NT3881D
- File Size: 212252 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·NT3881DF-01
- ETC [ETC]
- Dot Matrix LCD Controller and Driver
- 212252 KB
- ·NT3881DF-02
- ETC [ETC]
- Dot Matrix LCD Controller and Driver
- 212252 KB
- ·NT3881DH-01
- ETC [ETC]
- Dot Matrix LCD Controller and Driver
- 212252 KB
- ·NT3881DH-02
- ETC [ETC]
- Dot Matrix LCD Controller and Driver
- 212252 KB
- ·NT3882
- ETC [ETC]
- Dot Matrix LCD 40-Channel Driver
- 233094 KB
- ·NT3882F
- ETC [ETC]
- Dot Matrix LCD 40-Channel Driver
- 233094 KB
- ·NT3882H
- ETC [ETC]
- Dot Matrix LCD 40-Channel Driver
- 233094 KB
- ·NT3883
- ETC [ETC]
- Dot Matrix LCD 80-Channel Driver
- 295286 KB
