NT511740D5J

Features: · Extended Data Out Mode operation (Fast Page Mode with Extended Data Out)· TTL(5V) compatible inputs and outputs· Single +5V ± 10% power supply (5V product)· JEDEC Standard pinout·CAS beforeRAS refresh, hidden refresh,RAS -only refresh capability· Refresh : 2048 cycles / 32 ms· Self-ref...

product image

NT511740D5J Picture
See larger image
SeekIC No. : 004435786 Detail

NT511740D5J: Features: · Extended Data Out Mode operation (Fast Page Mode with Extended Data Out)· TTL(5V) compatible inputs and outputs· Single +5V ± 10% power supply (5V product)· JEDEC Standard pinout·CAS bef...

NT511740D5J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NT511740D5J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·
  Extended Data Out Mode operation (Fast Page Mode with Extended Data Out)
·  TTL(5V) compatible inputs and outputs
·  Single +5V ± 10% power supply (5V product)
·  JEDEC Standard pinout
·  CAS before RAS refresh, hidden refresh, RAS -only refresh capability
·  Refresh : 2048 cycles / 32 ms
·  Self-refresh capability (L-ver only)
·  Multi-bit test mode capability
·  Available in plastic SOJ packages


Pinout

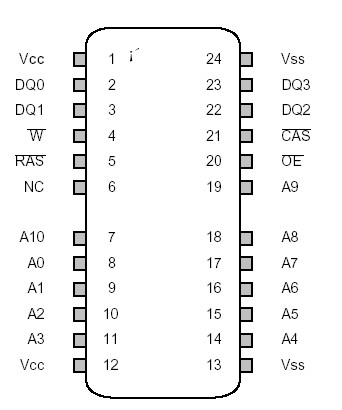

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VIN,VOUT -1.0 to +7.0 V
Voltage on VCC Supply Relative to VSS VCC -1.0 to +7.0 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD* 1 W
Operation Temperature Topr 0 to 70 °C
Storage Temperature Tstg -55 to 150 °C



Description

NT511740D5J is a family of 4,194,304 x 4 bit Extended Data Out CMOS DRAMs. Extended Data Out Mode offers high speed random access of memory cells within the same row, so called Hyper Page Mode. Power supply voltage (+5.0V ), refresh cycle (2K Ref), access time (-5 or -6), power consumption (Normal or Low power) and package type (SOJ) are optional features of this family.

All of NT511740D5J family have CAS -before- RAS refresh, RAS -only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 4Mx4 EDO Mode DRAM family is fabricated using NANYA's advanced CMOS process to realize high bandwidth, low power consumption and high reliability.

NT511740D5J may be used as main memory unit for microcomputer, high level computer and personal computer .
