Product Details

Description



Features:

· 40 pin DIP & 42 pin SDIP package
· Operating Voltage Range: 4.5V to 5.5V
· CMOS technology for low power consumption
· Crystal oscillator or ceramic resonator* available
· 6502 8  -bit CMOS CPU core
· 8MHz operation of frequency
· 4/8/12/16/24K bytes ROM are available
· 256 bytes of RAM (which stores EDID for DDC1/2B)
· One 8  -bit pre  -loadable base timer
· 14 channels of 8 bit PWM outputs: 6 channel with 5V open drain and 8 channel with 12V open drain
· 2 channel A/D converters with 6  -bit resolution
· 24 bi  -directional I/O port pins and 1 I/P pin
· Hsync/Vsync signal processor
· Hardware sync signals polarity & freq. evaluator
· Built  -In I2C bus interface
· Supporting VESA DDC1/2B function
· Six  -interrupt sources
  - INTV (Vsync INT)
  - INTE (External INT with rising edge trigger)
  - INTMR (Timer INT )
  - INTA (Slave Address Matched INT)
  - INTD (Shift Register INT)
  - INTS (SCL GO  -LOW INT)
· Hardware watch  -dog timer function

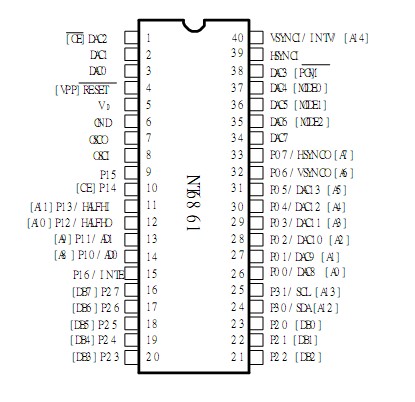

Pinout

Connection Diagram


Specifications

DC Supply Voltage VDD  - VSS  . . . . . . . . . . . . .-0.3V to 7V
Input Voltage . . . . . . . . . . . . . . . GND -0.2V to VCC+0.2V
Operating Temperature . . . . . . . . . . . . . . . . 0 to +70
Storage Temperature . . . . . . . . . . . . . . . -50 to +125


Description

NT6861 is a monitor component mC for auto-sync and digital controlled applications. It contains a 6502 8-bit CPU core, 256 bytes of RAM used as working RAM and stack area, 24K bytes of ROM maximum for programming, 14-channel 8-bit PWM D/A converters, 2- channel A/D converters for key detection saving I/O pins, one 8 bit pre-loadable base timer, internal Hsync and Vsync signals processor providing mode detection, watch-dog timer preventing system from abnormal operation, and an I2C bus interface.

Users can store EDID data in the 128 bytes of RAM for DDC1/2B, so that users can save the cost of dedicated EEPROM for EDID. Half frequency output function can save external one-shot circuit. All of these NT6861 designs create savings in component costs.
