General Description
NT6862 General Description
The NT6862 is a new generation monitor mC for auto-sync and digital control applications. Particularly, this chip supports various and efficient functions to allow users to easily develop USB monitors. It contains the 6502 8-bit CPU core, 512 bytes of RAM used as working RAM and stack area, 32K bytes of OTP ROM, 13-channels of 8-bit PWM D/A converters, 4-channel A/D converters for key detection which save I/O pins, one 8-bit pre-loadable base timer, internal Hsync and Vsync signals processor, a Watch-dog timer which prevents the system from abnormal operation, and two I2C bus interfaces. The user can store EDID data in the 128 bytes of RAM for DDC1/2B, so that user can reduce a dedicated EEPROM for EDID. A Half frequency output function can save external one-shot circuit. These designs are committed to reduce component cost. The 42 pin S-DIP IC provides two additional I/O pins port40 & port41, Part number NT6862U represents the SDIP IC. For future reference, port40 & port42 are only available for the 42 pin S-DIP IC.
NT6862 Features
Operating voltage range: 4.5V to 5.5V
CMOS technology for low power consumption
6502 8-bit CMOS CPU core
8 MHz operation frequency
32K/24K/16K bytes of ROM
512 bytes of RAM
One 8-bit base timer
13 channels of 8-bit PWM outputs with 5V open drain
4 channel A/D converters with 6-bit resolution
25 bi-directional I/O port pins (8 dedicated I/O pins)
Hsync/Vsync signals processor for separate & composite signals which includes hardware sync signals polarity detection and frequency counters with 2 sets of Hsync counting intervals
Hsync/Vsync polarity controlled output, 5 selectable free run output signals and self-test patterns, automute function, half freq. I/O function
Add a jitter filter at the front end of Hsync input path, reduce the jitter interference of Hysync input
Two built-in I2C bus interfaces support VESA DDC1/2B+
Two layers of interrupt management NMI interrupt sources - INTE0 (External INT with selectable edge trigger) - INTMUTE (Auto Mute Activated) IRQ interrupt sources - INTS0/1 (SCL Go-low INT) - INTA0/1 (Slave Address Matched INT) - INTTX0/1 (Shift Register INT) - INTRX0/1 (Shift Register INT) - INTNAK0/1 (No Acknowledge) - INTSTOP0/1 (Stop Condition Occurred INT) - INTE1 (External INT with Selectable Edge Trigger) - INTV (VSYNC INT) - INTMR (Base Timer INT) - INTADC (AD Conversion Done INT)
Hardware Watch-dog timer function
40-pin P-DIP and 42-pin S-DIP packages
CMOS technology for low power consumption
6502 8-bit CMOS CPU core
8 MHz operation frequency
32K/24K/16K bytes of ROM
512 bytes of RAM
One 8-bit base timer
13 channels of 8-bit PWM outputs with 5V open drain
4 channel A/D converters with 6-bit resolution
25 bi-directional I/O port pins (8 dedicated I/O pins)
Hsync/Vsync signals processor for separate & composite signals which includes hardware sync signals polarity detection and frequency counters with 2 sets of Hsync counting intervals
Hsync/Vsync polarity controlled output, 5 selectable free run output signals and self-test patterns, automute function, half freq. I/O function
Add a jitter filter at the front end of Hsync input path, reduce the jitter interference of Hysync input
Two built-in I2C bus interfaces support VESA DDC1/2B+
Two layers of interrupt management NMI interrupt sources - INTE0 (External INT with selectable edge trigger) - INTMUTE (Auto Mute Activated) IRQ interrupt sources - INTS0/1 (SCL Go-low INT) - INTA0/1 (Slave Address Matched INT) - INTTX0/1 (Shift Register INT) - INTRX0/1 (Shift Register INT) - INTNAK0/1 (No Acknowledge) - INTSTOP0/1 (Stop Condition Occurred INT) - INTE1 (External INT with Selectable Edge Trigger) - INTV (VSYNC INT) - INTMR (Base Timer INT) - INTADC (AD Conversion Done INT)
Hardware Watch-dog timer function
40-pin P-DIP and 42-pin S-DIP packages

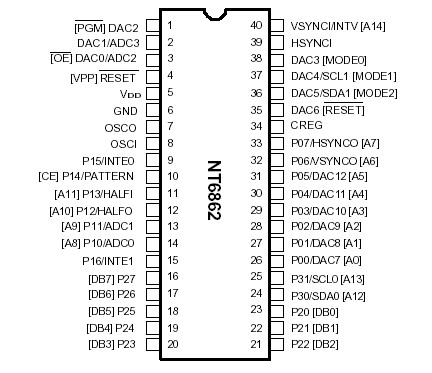

NT6862 Connection Diagram
NT6862
