NT68F62

·Operating voltage range: 4.5V to 5.5V
·CMOS technology for low power consumption
·6502 8-bit CMOS CPU core
·8 MHz operation frequency
·32K bytes of flash memory for Multi -Times Program
·512 bytes of RAM
·2Kbytes Masked BootROM for ISP.
·One 8-bit base timer
·13 channels of 8-bit PWM outputs with 5V open drain
·4 channel A/D converters with 6-bit resolution
·25 bi-directional I/O port pins (8 dedicated I/O pins)
·Hsync/Vsync signals processor for separate & composite signals, including hardware sync signals polarity detection and freq. counters with 2 sets of Hsync counting intervals
·Hsync/Vsync polarity controlled output, 5 selectable free run output signals and self-test patterns, automute function, half freq. I/O function
·Two built-in IIC bus interfaces support VESA DDC1/2B+
·Two layers of interrupt management NMI interrupt sources
- INTE0 (External INT with selectable edge trigger)
- INTMUTE (Auto Mute Activated) IRQ interrupt sources
- INTS0/1 (SCL Go-low INT)
- INTA0/1 (Slave Address Matched INT)
- INTTX0/1 (Shift Register INT)
- INTRX0/1 (Shift Register INT)
- INTNAK0/1 (No Acknowledge)
- INTSTOP0/1 (Stop Condition Occurred INT)
- INTE1 (External INT with Selectable Edge Trigger)
- INTV (VSYNC INT)
- INTMR (Base Timer INT)
- INTADC (AD Conversion Done INT)
·Hardware watch-dog timer function

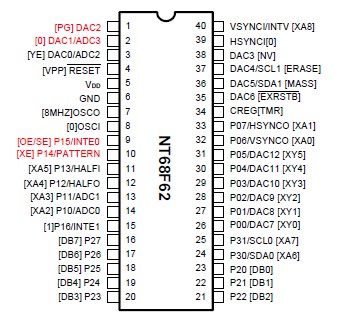

·40-pin P-DIP and 42-pin S-DIP packages

The NT68F62 is a new generation of monitor C for autosync and digital control applications. Particularly, this chip supports various functions to allow users to easily develop USB monitors. It contains the 6502 8-bit CPU core, 512 bytes of RAM for use as working RAM and as stack area, 32K bytes of Flash memory, 13-channels of 8-bit PWM D/A converters, 4-channel A/D converters for detection of keys which can save I/O pins, one 8-bit pre-loadable base timer, an internal Hsync and Vsync signals processor and a watch-dog timer, which prevents the system from abnormal operation and two IIC bus interfaces. The user can store EDID data in the 128 bytes of RAM for DDC1/2B, so that the user can reduce a dedicated EEPROM for EDID. The half frequency output function can save the external oneshot circuit. All of these designs are borne of our committment to offer our user savings on component costs. The 42 pin S-DIP IC provides two additional I/O pins port40 & port41, Part number NT68F62U represents the SDIP IC. For future reference, port40 & port42 are only available for the 42 pin S-DIP IC.
