NT68P61A

Features: 40 pin DIP & 42 pin SDIP packageOperating Voltage Range: 4.5V to 5.5V CMOS technology for low power consumption Crystal oscillator or ceramic resonator* available 6502 8-bit CMOS CPU core 8MHz operation of frequency 24K bytes of OTP (one time programming) ROM 256 bytes of RAM (which ...

product image

NT68P61A Picture
See larger image
SeekIC No. : 004435819 Detail

NT68P61A: Features: 40 pin DIP & 42 pin SDIP packageOperating Voltage Range: 4.5V to 5.5V CMOS technology for low power consumption Crystal oscillator or ceramic resonator* available 6502 8-bit CMOS CPU c...

NT68P61A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NT68P61A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 40 pin DIP & 42 pin SDIP package
 Operating Voltage Range: 4.5V to 5.5V
CMOS technology for low power consumption
Crystal oscillator or ceramic resonator* available
6502 8-bit CMOS CPU core
8MHz operation of frequency
24K bytes of OTP (one time programming) ROM
256 bytes of RAM (which stores EDID for DDC1/2B)
One 8-bit pre-loadable base timer
14 channels of 8 bit PWM outputs:
   6 channel with 5V open drain and 8 channel with 12V open drain
2 channel A/D converters with 6-bit resolution
24 bi-directional I/O port pins and 1 I/P pin
Hsync/Vsync signal processor
Hardware sync signals polarity & freq. evaluator
Built-In I2C bus interface
Supporting VESA DDC1/2B function
Six-interrupt sources
   - INTV (Vsync INT)
   - INTE (External INT with rising edge trigger)
   - INTMR(Timer INT )
   - INTA (Slave Address Matched INT)
   - INTD (Shift Register INT)
   - INTS (SCL GO-LOW INT)
Hardware watch-dog timer function
Built-In Low Voltage reset circuit (LVRC)


Pinout

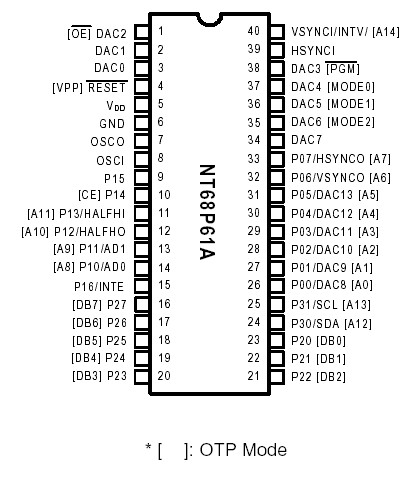

Connection Diagram


Specifications

DC Supply Voltage VDD - VSS . . . . . . . . . .-0.3V to 7V
Input Voltage . . . . . . . . . . . GND -0.2V to VCC +0.2V
Operating Temperature . . . . . . . . .. . . . 0 to +70
Storage Temperature . . . . . . . . .  . . -50 to +125


Description

NT68P61A is a monitor component
