Part Number: NTE992
Description: The NTE992 is an internally compensated Norton operational amplifier in a 14Lead DIP type pack-age designed specificall...
- Table of contents:
NTE992
-
Suppliers
DataSheet
General Description
NTE992 General Description
The NTE992 is an internally compensated Norton operational amplifier in a 14Lead DIP type pack-age designed specifically for single positive power supply applications found in industrial control sys-tems and automotive electronics. This device contains four independent amplifiers making it ideal for applications such as active filters, multichannel amplifiers, tachometers, oscillators, and other similar usages.
NTE992 Maximum Ratings
Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28V
Input Currents (Iin+ or Iin), Iin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA
Output Current, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Power Dissipation (TA = +25), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 625mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 5mW/
Operating Ambient Temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 40° to +85
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Input Currents (Iin+ or Iin), Iin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA
Output Current, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Power Dissipation (TA = +25), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 625mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 5mW/
Operating Ambient Temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 40° to +85
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
NTE992 Features
SingleSupply Operation
Internally Compensated
Wide Unity Gain Bandwidth: 4MHz Typ
Low Input Bias Current: 50nA Typ
High OpenLoop Gain: 1000V/V Min
Large Output Voltage Swing: (VCC 1) VPP
Internally Compensated
Wide Unity Gain Bandwidth: 4MHz Typ
Low Input Bias Current: 50nA Typ
High OpenLoop Gain: 1000V/V Min
Large Output Voltage Swing: (VCC 1) VPP

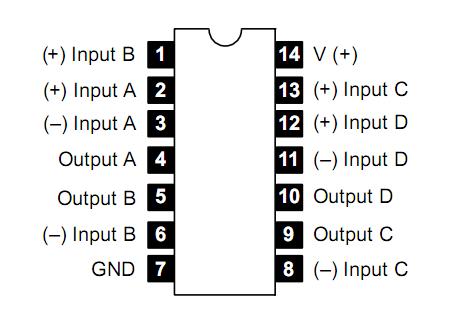

NTE992 Connection Diagram
NTE992
