Purchase NTGS4141NT1, In-stock NTGS4141NT1 From SeekIC.

MFG:ON Semiconductor  Category:Discrete Semiconductor Products

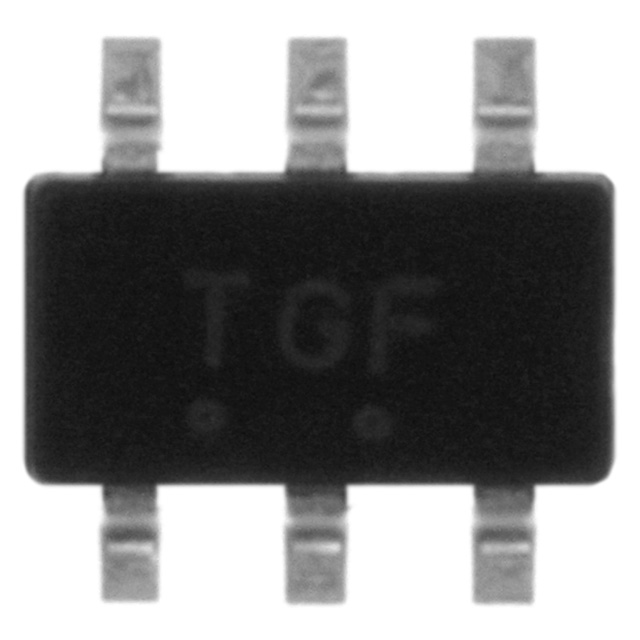

NTGS4141NT1 Product Image

NTG Series Datasheet download

Five Points

Part Number: NTGS4141NT1

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: MOSFET N-CH 30V 3.5A 6-TSOP

Price Break

3000

Unit Price

.18300

Extended Price

549.00

(All prices are in USD) Prices for reference only
Urgent Purchase

NTGS4141NT1 General Description

MOSFET N-CH 30V 3.5A 6-TSOP

NTGS4141NT1 Parameters

Technical/Catalog InformationNTGS4141NT1
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C3.5A
Rds On (Max) @ Id, Vgs25 mOhm @ 7A, 10V
Input Capacitance (Ciss) @ Vds 560pF @ 24V
Power - Max500mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs12nC @ 10V
Package / Case6-TSOP
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names NTGS4141NT1
NTGS4141NT1
