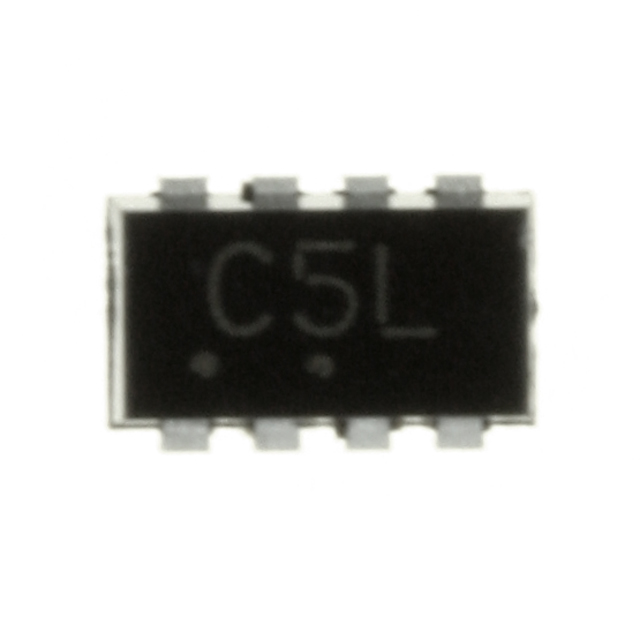

See larger image

SeekIC No. : 00166213 Detail

NTHD4N02FT1: MOSFET 20V 3.9A N-Channel

NTHD4N02FT1 Data Sheet

Get Latest Price

Part Number:: NTHD4N02FT1
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NTHD2102P evaluate
Features: • Offers an Ultra Low RDS(on) Solution in the ChipFET Package• Miniature Chi...
NTHD2102PT1 evaluate
MOSFET -8V -4.6A P-Channel
NTHD2102PT1G evaluate
US $.23 - .36 / Piece

MOSFET -8V -4.6A P-Channel

Product Details

Quick Details

Transistor Polarity :	N-Channel	Drain-Source Breakdown Voltage :	20 V
Gate-Source Breakdown Voltage :	+/- 12 V	Continuous Drain Current :	2.9 A
Resistance Drain-Source RDS (on) :	80 mOhms at 4.5 V	Configuration :	Single Dual Drain
Maximum Operating Temperature :	+ 150 C	Mounting Style :	SMD/SMT
Package / Case :	Chip FET	Packaging :	Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V
Configuration : Single Dual Drain
Continuous Drain Current : 2.9 A
Package / Case : Chip FET
Resistance Drain-Source RDS (on) : 80 mOhms at 4.5 V

Parameters:

Technical/Catalog Information	NTHD4N02FT1
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	2.9A
Rds On (Max) @ Id, Vgs	80 mOhm @ 2.9A, 4.5V
Input Capacitance (Ciss) @ Vds	300pF @ 10V
Power - Max	910mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	4nC @ 4.5V
Package / Case	8-ChipFET?
FET Feature	Diode (Isolated)
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NTHD4N02FT1 NTHD4N02FT1 NTHD4N02FT1OS ND NTHD4N02FT1OSND NTHD4N02FT1OS
