Purchase NTHD4P02F, In-stock NTHD4P02F From SeekIC.
MFG:ON Package Cooled:1206-8 D/C:07+/08+
- Table of contents:
NTHD4P02F
-
Suppliers
DataSheet
General Description
NTHD4P02F Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit | ||
| Drain?to?Source Voltage |
VDSS |
20 |
V | ||
| Gate?to?Source Voltage |
VGS |
±12 |
V | ||
| Continuous Drain Current |
SteadyState |
TJ = 25°C |
ID |
−2.2 |
A |
|
TJ = 85°C |
−1.6 | ||||
| t 5 s |
TJ = 25°C |
−3.0 | |||
| Pulsed DrainCurrent |
tp=10 s |
IDM |
−9.0 |
A | |
| PowerDissipation | SteadyState |
TJ = 25°C |
PD |
1.1 |
W |
|
TJ = 85°C |
0.6 | ||||
| t 5 s |
TJ = 25°C |
2.1 | |||
| Continuous Source Current (Body Diode) |
IS |
−2.1 |
A | ||
| Operating Junction and StorageTemperature |
TJ,TSTG |
−55 to 150 |
°C | ||
| Lead Temperature for Soldering Purposes(1/8" from case for 10 s) |
TL |
260 |
°C | ||
NTHD4P02F Features
• Leadless SMD Package Featuring a MOSFET and Schottky Diode
• 40% Smaller than TSOP−6 Package with Similar ThermalCharacteristics
• Independent Pinout to each Device to Ease Circuit Design
• Ultra Low VF Schottky
• Pb−Free Package is Available
• 40% Smaller than TSOP−6 Package with Similar ThermalCharacteristics
• Independent Pinout to each Device to Ease Circuit Design
• Ultra Low VF Schottky
• Pb−Free Package is Available
NTHD4P02F Typical Application
• Li−Ion Battery Charging
• High Side DC−DC Conversion Circuits
• High Side Drive for Small Brushless DC Motors
• Power Management in Portable, Battery Powered Products
• High Side DC−DC Conversion Circuits
• High Side Drive for Small Brushless DC Motors
• Power Management in Portable, Battery Powered Products

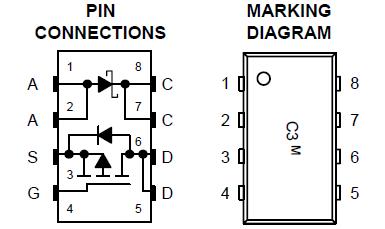

NTHD4P02F Connection Diagram
NTHD4P02F
PDF/DataSheet Download
- Datasheet: NTHD4P02F
- File Size: 76435 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
