General Description
OP193 General Description
The OP193 family of single-supply operational amplifiers features a combination of high precision, low supply current and the ability to operate at low voltages. For high performance in single supply systems the input and output rang-es include ground, and the outputs swing from the negative rail to within 600 mV of the positive supply. For low volt-age operation the OP193 family can operate down to 1.7 volts or ±0.85 volts.
The combination of high accuracy and low power operation make the OP193 family useful for battery powered equip-ment.Its low current drain and low voltage operation allow it to continue performing long after other amplifiers have ceased functioning either because of battery drain or headroom.
The OP193 family is specified for single +2 volt through dual ±15 volt operation over the HOT (40°C to +125°C) temperature range. They are available in plastic DIPs, plus SOIC surface mount packages.
OP193 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . ±18 V
Output Short-Circuit Duration to Gnd . . . . . . . . . . Indefinite
Storage Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Operating Temperature Range
OP193/OP293/OP493E, F . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . ±18 V
Output Short-Circuit Duration to Gnd . . . . . . . . . . Indefinite
Storage Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Operating Temperature Range
OP193/OP293/OP493E, F . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C
OP193 Features
Operates from +1.7 V to 618 V
Low Supply Current: 15 A/Amplifier
Low Offset Voltage: 75 V
Outputs Sink and Source: 68 mA
No Phase Reversal
Single or Dual Supply Operation
High Open-Loop Gain: 600 V/mV
Unity-Gain Stable
Low Supply Current: 15 A/Amplifier
Low Offset Voltage: 75 V
Outputs Sink and Source: 68 mA
No Phase Reversal
Single or Dual Supply Operation
High Open-Loop Gain: 600 V/mV
Unity-Gain Stable
OP193 Typical Application
Digital Scales
Strain Gages
Portable Medical Equipment
Battery Powered Instrumentation
Temperature Transducer Amplifier
Strain Gages
Portable Medical Equipment
Battery Powered Instrumentation
Temperature Transducer Amplifier

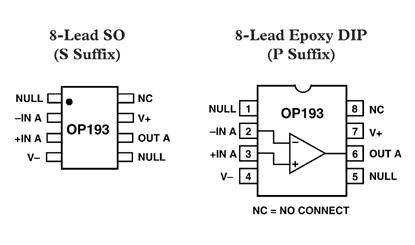

OP193 Connection Diagram
OP193
PDF/DataSheet Download
