Purchase OP42, In-stock OP42 From SeekIC.
MFG:ADI D/C:09
Part Number: OP42
MFG: ADI
D/C: 09
Description: The OP-42 is a fast precision JFET-input operational amplifier. Similar in speed to the OP-17, the OP-42 offers a symmetric 58V/s slew ra...
- Table of contents:
OP42
-
Suppliers
DataSheet
General Description
OP42 General Description
The OP-42 is a fast precision JFET-input operational amplifier. Similar in speed to the OP-17, the OP-42 offers a symmetric 58V/s slew rate and is internally compensated for unity-gain
OP42 Maximum Ratings
| -3dB Bandwidth | 10MHz |
| Slew Rate | 50V/s |
| Vos | 1.5mV |
| Ib | 130pA |
| Input Noise (nV/rtHz) | 12nV/rtHz |
| Vcc-Vee Supply (V) | 16 to 40 |
| Iq per Amplifier | 6.5mA |
| # OpAmps per Pkg | 1 |
| Operating Temp Range | -55 to +125 |
| Packages | DIP,LCC,SOIC,TO-X |

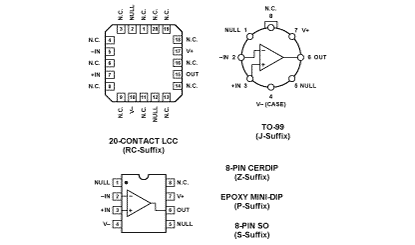

OP42 Connection Diagram
OP42
PDF/DataSheet Download
- Datasheet: OP42
- File Size: 610719 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
