General Description
OQ2545BHP General Description
The OQ2545 is a driver IC intended to be used with a directly modulated laser diode or with an Electro Absorption Modulator (EAM) in SDH/SONET 2.5 Gbits/s optical transmission systems.
The IC features differential data inputs. Loop mode inputs are provided for system testing, along with an output for continuous monitoring. In addition, the OQ2545HP features differential clock inputs for internal retiming resulting in a better jitter performance.
The IC has bias and modulating current outputs, the levels of which can be set separately. As an additional safety measure, the active HIGH-level input for automatic laser shutdown (pin ALS) can be used to switch off the laser modulation and bias currents.
Although the IC is intended for 2.5 Gbits/s optical transmission systems, it can be used in any application requiring high current drive at high frequencies.
The IC is transparent from input to output.
OQ2545BHP Maximum Ratings
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT |
| VCC | supply voltage for TTL interface | -6 | +6.0 | V |
| VEE1 | supply voltage for TTL interface | -0.5 | +0.5 |
V |
| VEE2 | supply voltage for analog section |
-7.5 | +0.5 | V |
| Vn | DC voltage on pins DIN, DINQ, DLOOP, DLOOPQ, CIN, CINQ, CLOOP and CLOOP pins MON and MONQ pins ALS and ENL pins EFADJ, APADJ, SIMOD and SIBIAS pins SMOD and BGCAP |
-1.0 -2.0 -0.5 VEE2 - 0.5 VEE1 - 0.5 |
+0.5 +0.5 VCC + 0.5 0.5 0.5 |
V V V V V |
| In | DC current on pins LA and LAQ pin IBIAS pins MON and MONQ pin DIOA |
- - - - |
80 110 20 10 |
mA mA mA mA |
| Tj | junction temperature | - | 150 | |
| Tstg | storage temperature | -65 | +150 |
OQ2545BHP Features
· Differential 50 W inputs for direct connection to Current-Mode Logic (CML) outputs
· Internal retiming to minimize jitter (OQ2545HP only)
· Input clock phase margin of 320° at 2.5 Gbits/s (OQ2545HP only)
· RF output current sinking capability of 60 mA
· Bias output current sinking capability of 100 mA
· TTL compatible control inputs
· Loop mode for system testing
· Continuous output monitoring
· Power dissipation <1500 mW (for typical application)
· Low cost LQFP48 plastic package.
· Internal retiming to minimize jitter (OQ2545HP only)
· Input clock phase margin of 320° at 2.5 Gbits/s (OQ2545HP only)
· RF output current sinking capability of 60 mA
· Bias output current sinking capability of 100 mA
· TTL compatible control inputs
· Loop mode for system testing
· Continuous output monitoring
· Power dissipation <1500 mW (for typical application)
· Low cost LQFP48 plastic package.
OQ2545BHP Typical Application
· Digital fibre optical modulation driver in STM16/OC48 short, medium and long haul optical transmission systems
· Optical modulation driver in high-speed data networks
· High current driver for electro-optical converters
· High current electrical line driver.
· Optical modulation driver in high-speed data networks
· High current driver for electro-optical converters
· High current electrical line driver.

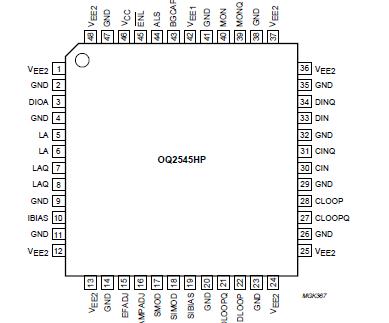

OQ2545BHP Connection Diagram
OQ2545BHP
PDF/DataSheet Download
- Datasheet: OQ2545BHP
- File Size: 705522 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
